Chart 4

Fig 1: Troubleshooting Flow Chart - Radio
G04806283Courtesy of KIA MOTORS AMERICA, INC.

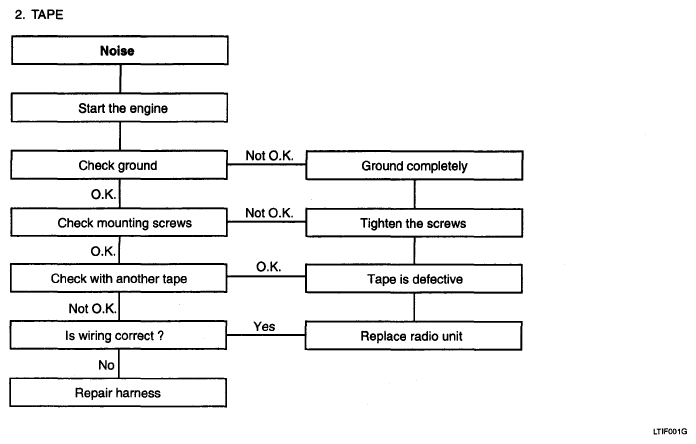

Fig 2: Troubleshooting Chart - Tape
G04863500Courtesy of KIA MOTORS AMERICA, INC.
