Water Temperature Control Assembly

WARNING: This page is about a different car, the 2007 Kia Sedona and 2006 Kia Sedona. However, it is still accessible from the selected car via links, so may be relevant.
  1. Drain the engine coolant.
  2. Remove air cleaner assembly. (Refer to ENGINE AND TRANSAXLE ASSEMBLY )
  3. Disconnect radiator upper and lower hose (A).
    Fig 1: Locating Radiator Upper And Lower Hoses
    G04882936Courtesy of KIA MOTORS AMERICA, INC.
  4. Disconnect ECT connector.
  5. Disconnect heater hose, water vent hose and water hose from water temperature control assembly.
  6. Remove wiring protector.
  7. Remove water temperature control assembly (A).

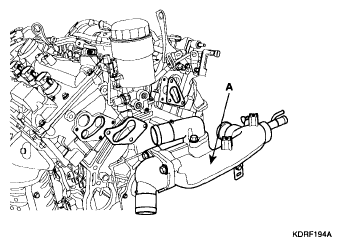

    Fig 2: Identifying Water Temperature Control Assembly
    G04883113Courtesy of KIA MOTORS AMERICA, INC.
