Air Bag Module And Clock Spring: Removal

WARNING: This page is about a different car, the 2007 Kia Sedona and 2006 Kia Sedona. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the battery negative cable and wait at least three minutes before beginning work.
Remove the airbag module mounting bolts.

Fig 1: Locating Airbag Module Mounting Bolts
Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the horn connector (A).

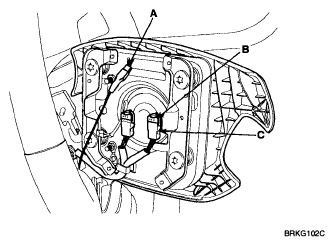

Fig 2: Identifying Horn Connector And Connector Locking Pin
Courtesy of KIA MOTORS AMERICA, INC.
Release the connector locking pin (B), then disconnect the driver airbag module connector (C).
CAUTION: The removed airbag module should be stored in a clean, dry place with the pad cover face up.
Remove the steering wheel and steering wheel column cover (Refer to STEERING COLUMN / SHAFT ).
Disconnect the clock spring and horn connector, then remove the clock spring.

Fig 3: Identifying Clock Spring And Horn Connector
Courtesy of KIA MOTORS AMERICA, INC.
