Power Steering Hoses: Components

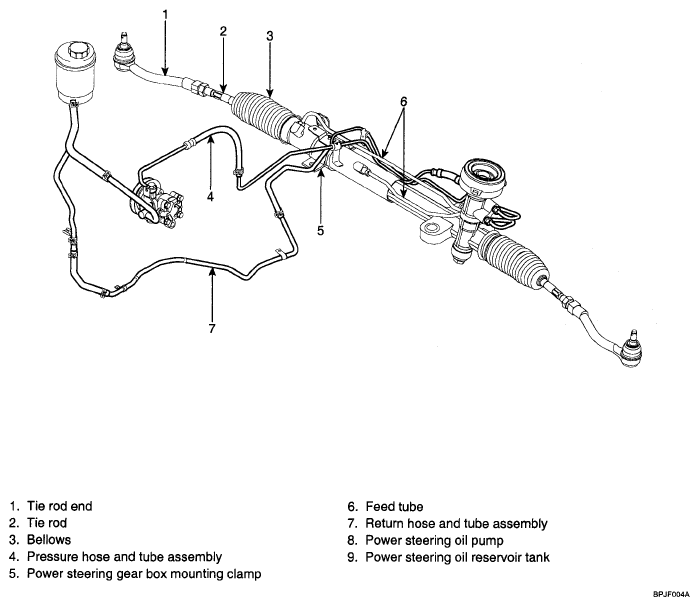

Fig 1: Identifying Power Steering System Components

G04862964

Courtesy of KIA MOTORS AMERICA, INC.
