Front Lower Arm: Components

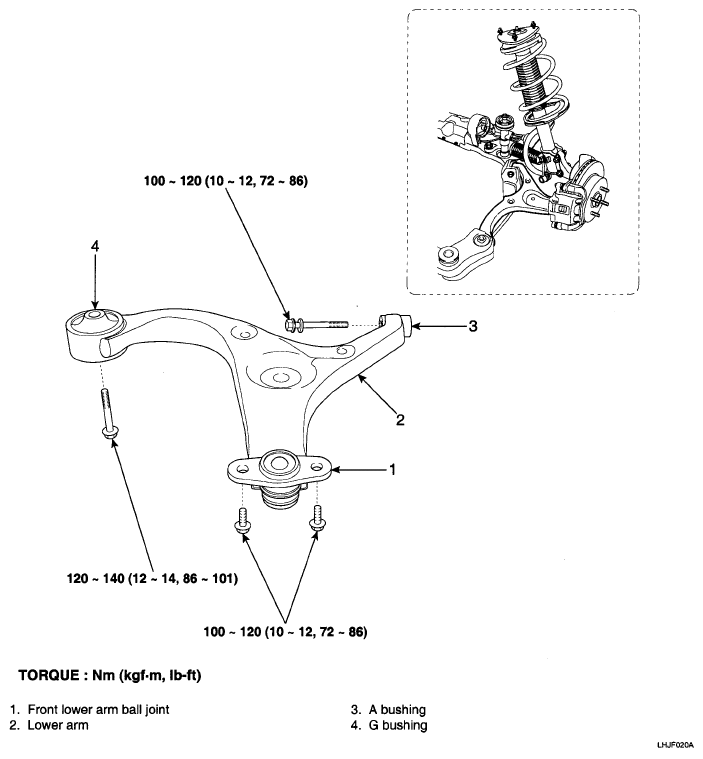

Fig 1: Front Lower Arm Replacement Components With Torque Specifications
G04862813Courtesy of KIA MOTORS AMERICA, INC.
