Front Strut Assembly: Components

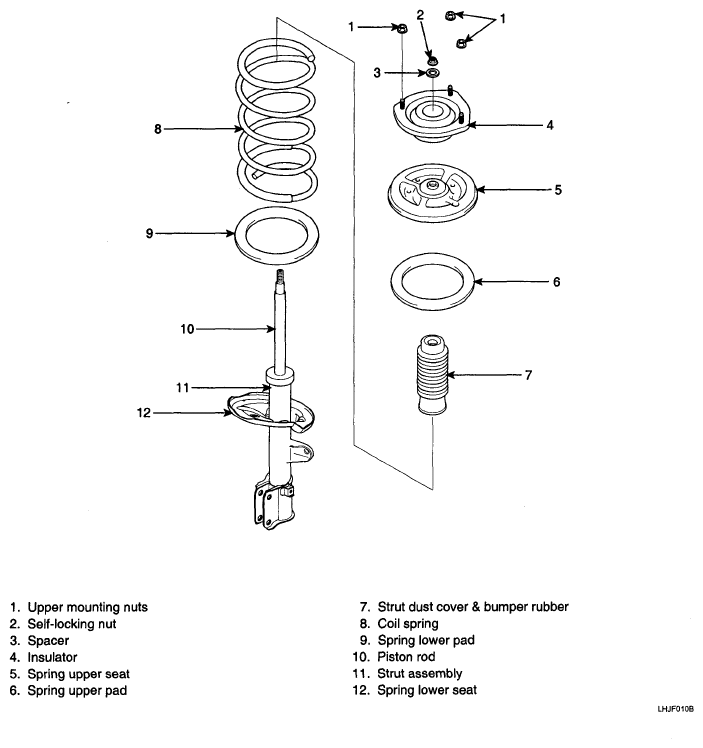

Fig 1: Identifying Front Strut Assembly Components

G04862792

Courtesy of KIA MOTORS AMERICA, INC.
