Air Register: Service and Repair

REPLACEMENT

AIR VENT REPLACEMENT

NOTE:
- When prying with a flat-up screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
- Put on gloves to protect your hands.

1. Remove the crash pad side cover.

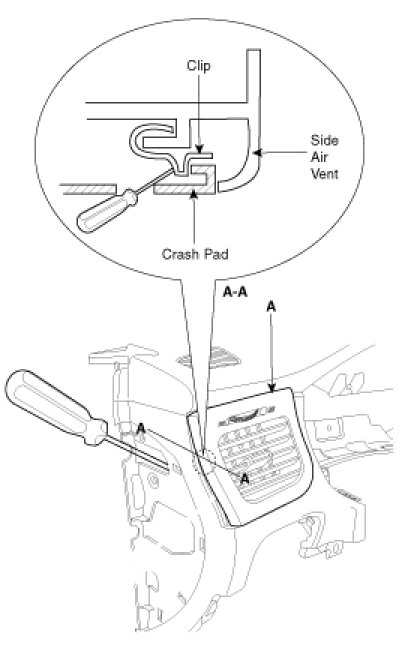

2. Using a screw driver remove the air vent(A).




3. Installation is the reverse of removal.
