Repair Procedures










REPLACEMENT

1. Disconnect the negative (-) battery terminal.

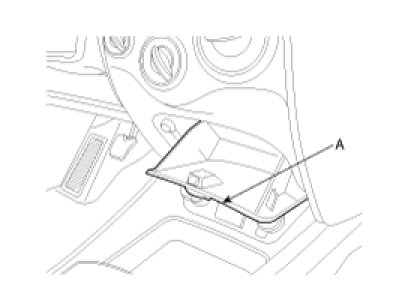

2. Remove the ashtray (A).




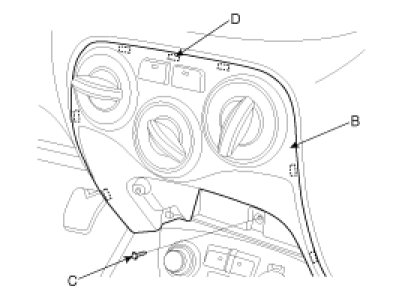

3. Remove the center facia lower panel (B) by pulling it using a screw driver (-) after loosening a screw (A). Avoid damaging retaining clips.

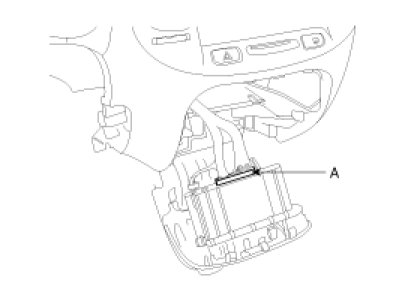

4. Disconnect the connectors (A) from the center facia.

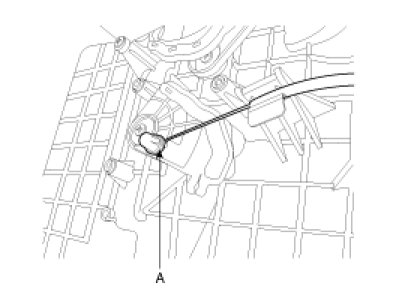

5. Remove the heater & A/C controller temperature control cable (A).

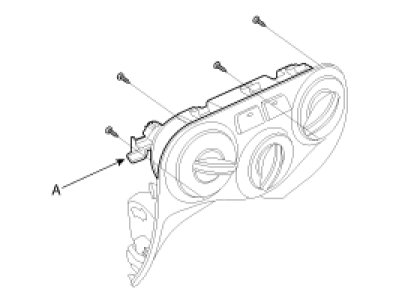

6. Remove the heater & A/C controller (A) after loosening 4 screws.




7. Installation is the reverse order of removal.
