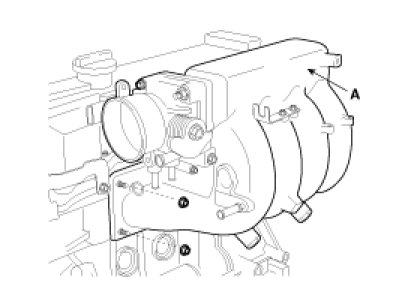

Intake Manifold










Intake Manifold

Tightening torque 14.7 - 19.6 N.m (1.5 - 2.0 kgf.m, 10.8 - 14.5 lb-ft)
