Window Track: Service and Repair










REPLACEMENT

REAR CHANNEL REPLACEMENT
1. Remove front door trim.

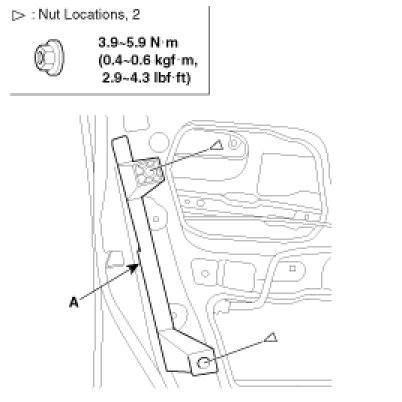

2. Remove the rear channel(A).




3. Installation is the reverse of removal.
