Electric Control Location

The TCM (PCM) is located on the intake manifold in the engine room.

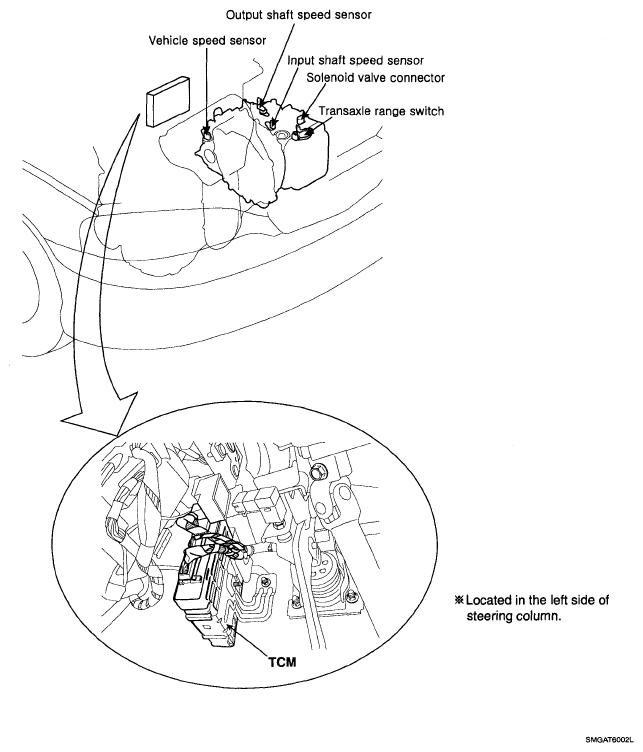

Fig 1: Identifying TCM Location
G05186309Courtesy of KIA MOTORS AMERICA, INC.
