Input And Output Diagram

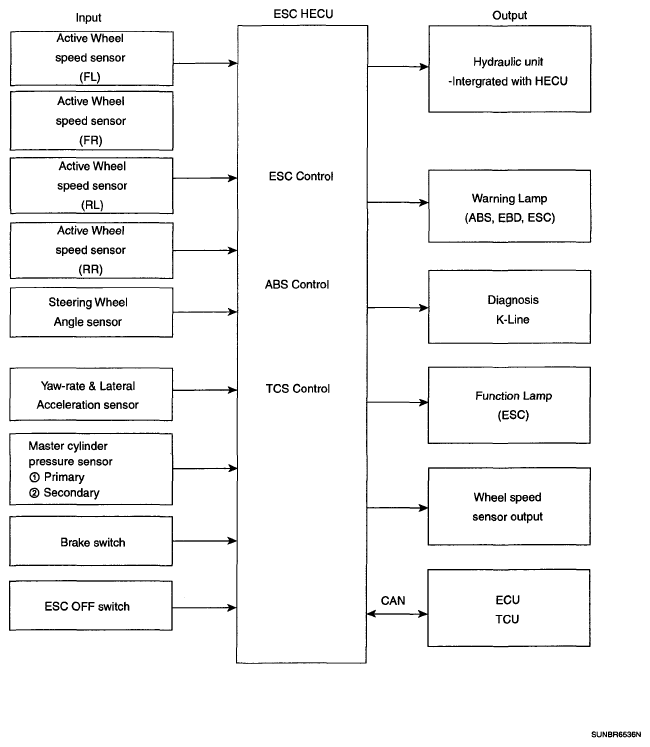

Fig 1: Input And Output Diagram
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
