Power Door Mirror Switch: Components

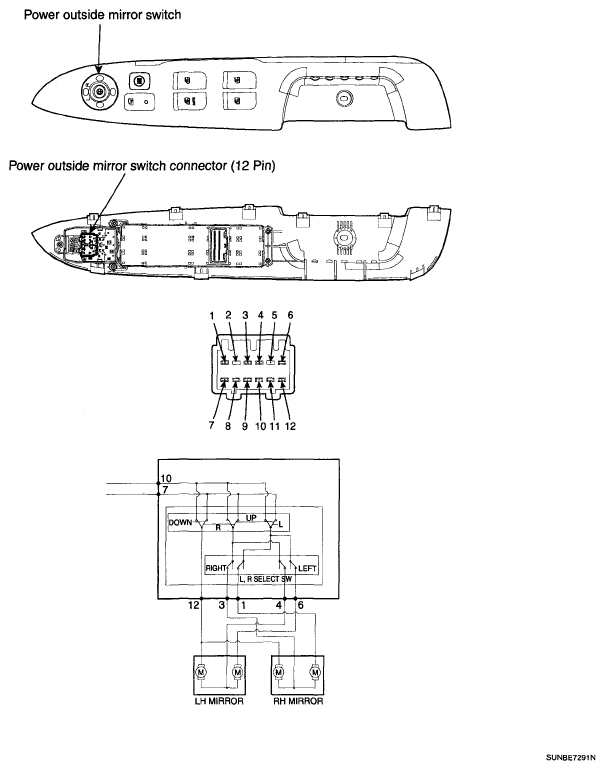

Fig 1: Identifying Power Door Mirror Switch Components
G05187877Courtesy of KIA MOTORS AMERICA, INC.
