Evaporative And ORVR Emission Control System: Components

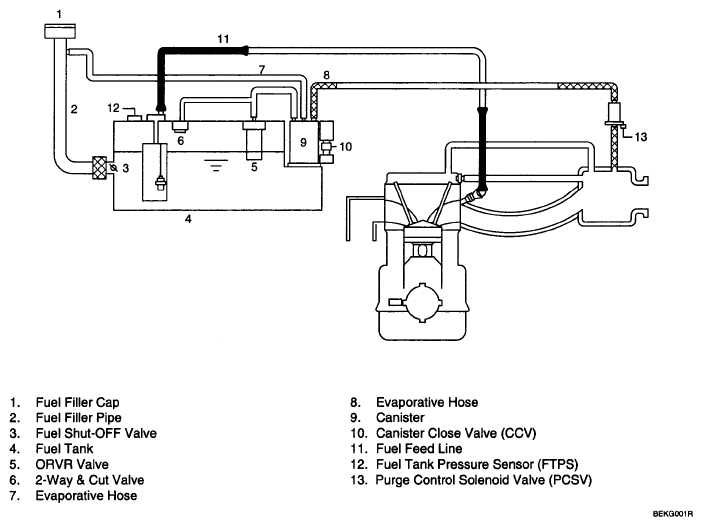

Fig 1: Identifying Evaporative And Emission Control System
G04804165Courtesy of KIA MOTORS AMERICA, INC.
