Power Train: Reverse

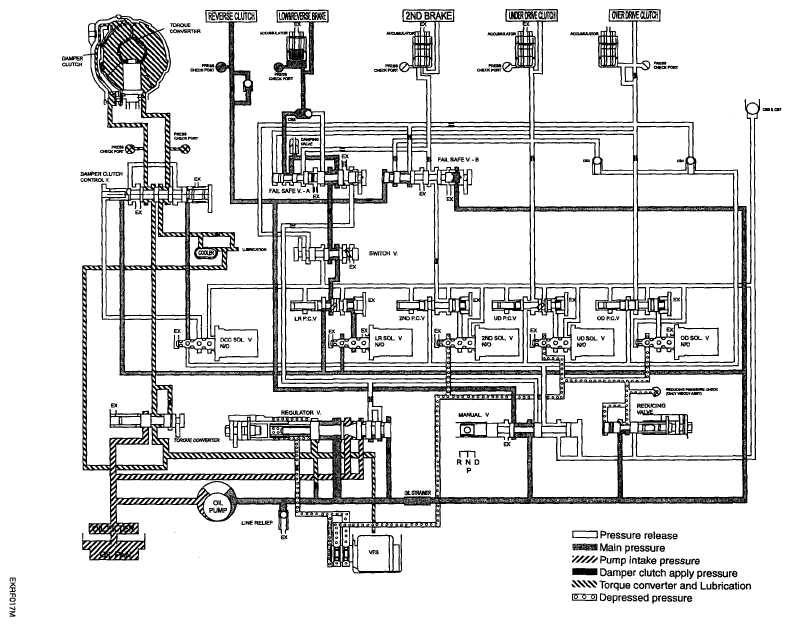

Fig 1: Hydraulic Pressure Diagram - Reverse
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
