Component Location

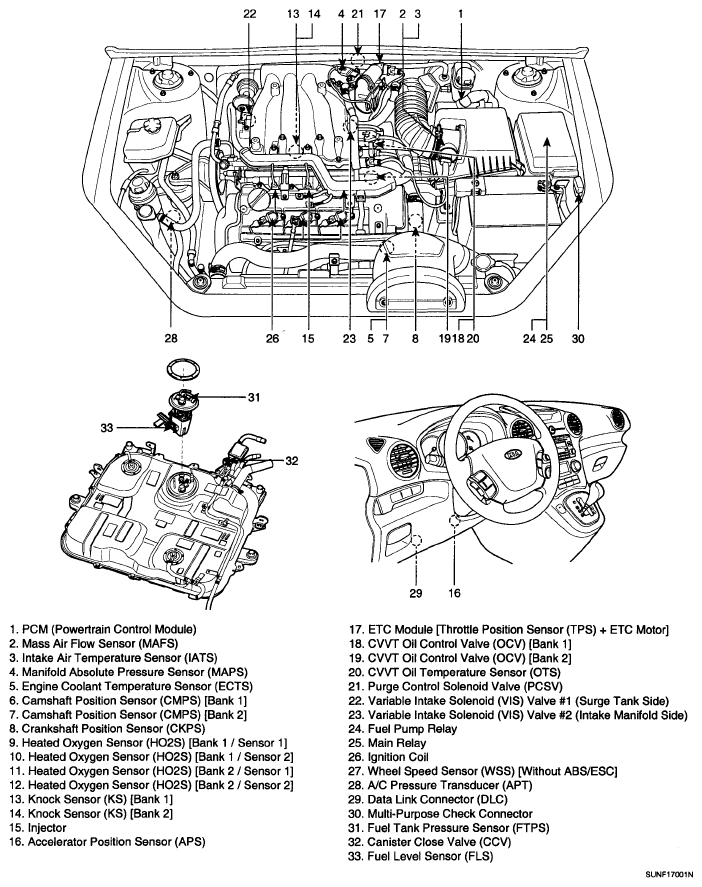

Fig 1: Identifying Gasoline Engine Control System Components Location (1 Of 5)

Courtesy of KIA MOTORS AMERICA, INC.

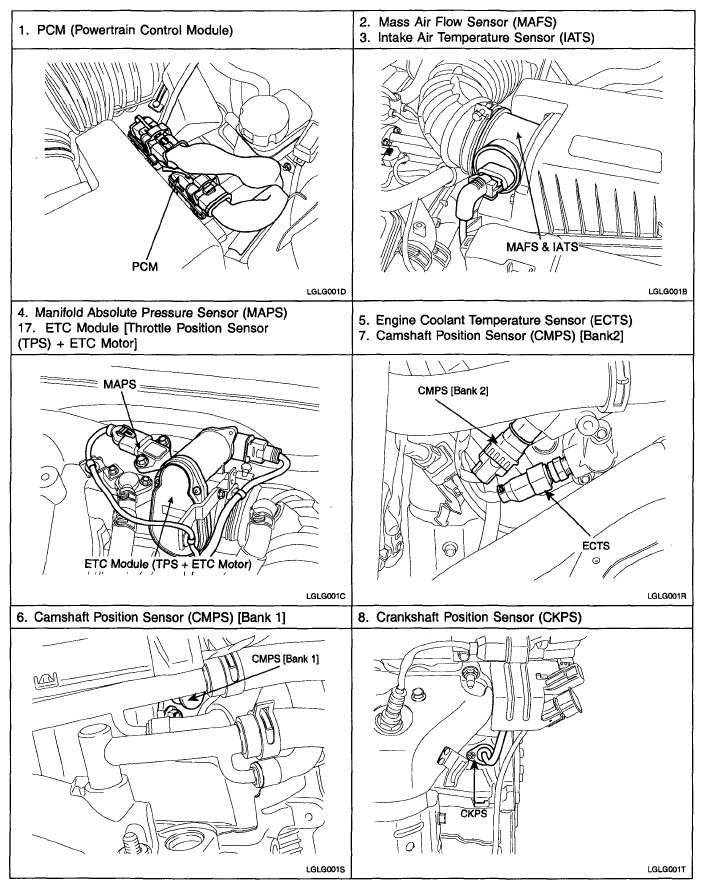

Fig 2: Identifying Gasoline Engine Control System Components Location (2 Of 5)

Courtesy of KIA MOTORS AMERICA, INC.

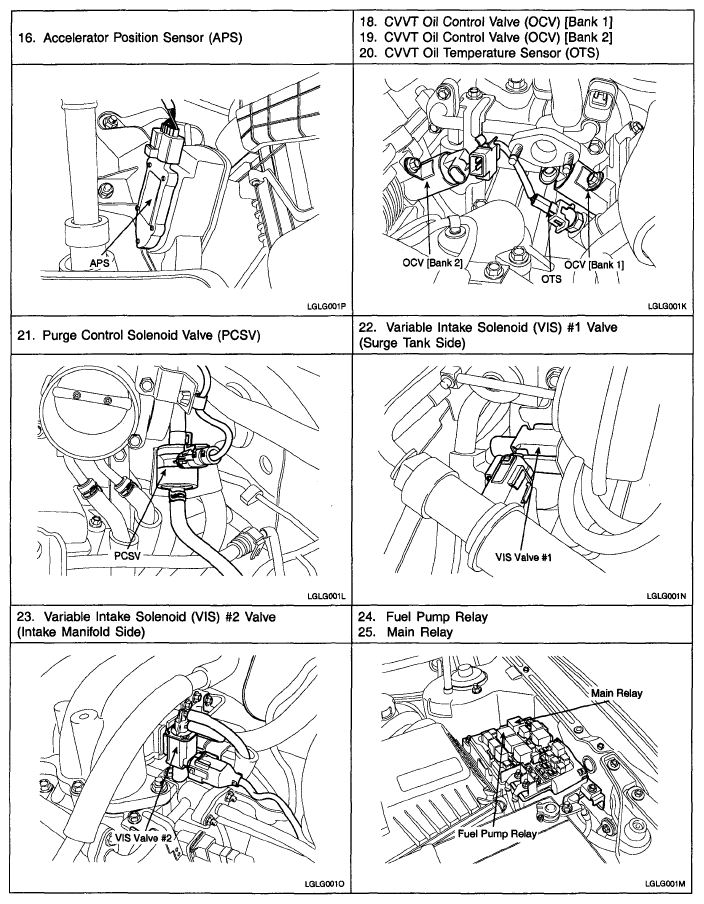

Fig 3: Identifying Gasoline Engine Control System Components Location (3 Of 5)

Courtesy of KIA MOTORS AMERICA, INC.

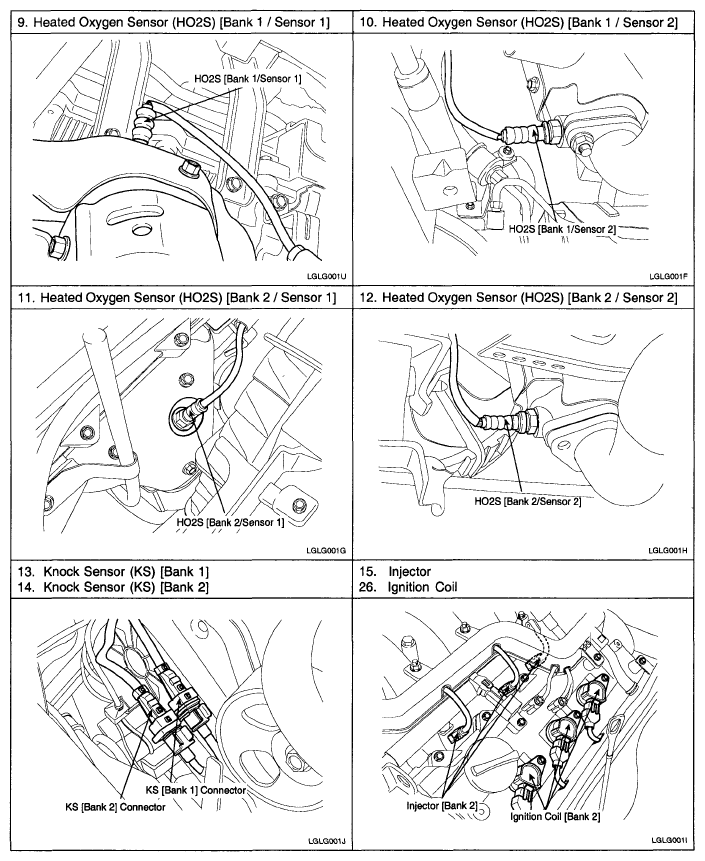

Fig 4: Identifying Gasoline Engine Control System Components Location (4 Of 5)

Courtesy of KIA MOTORS AMERICA, INC.

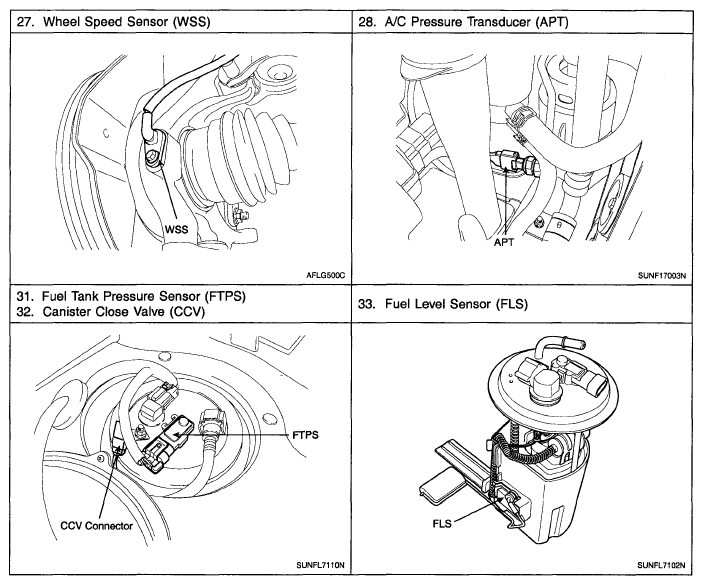

Fig 5: Identifying Gasoline Engine Control System Components Location (5 Of 5)

Courtesy of KIA MOTORS AMERICA, INC.
