Locations
>>
Harness Locations
>>
Main Harness
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Main Harness

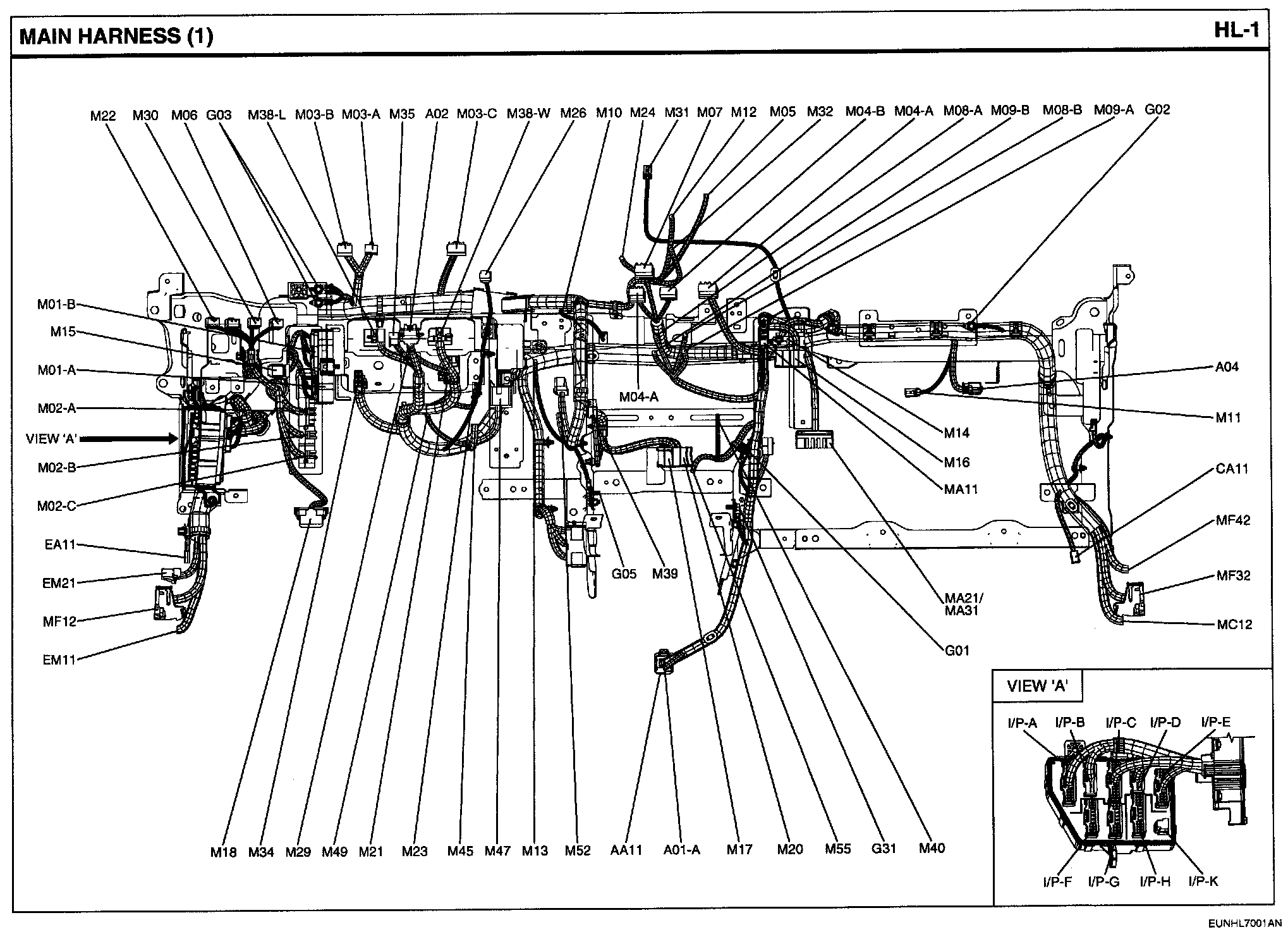

Main Harness (1):

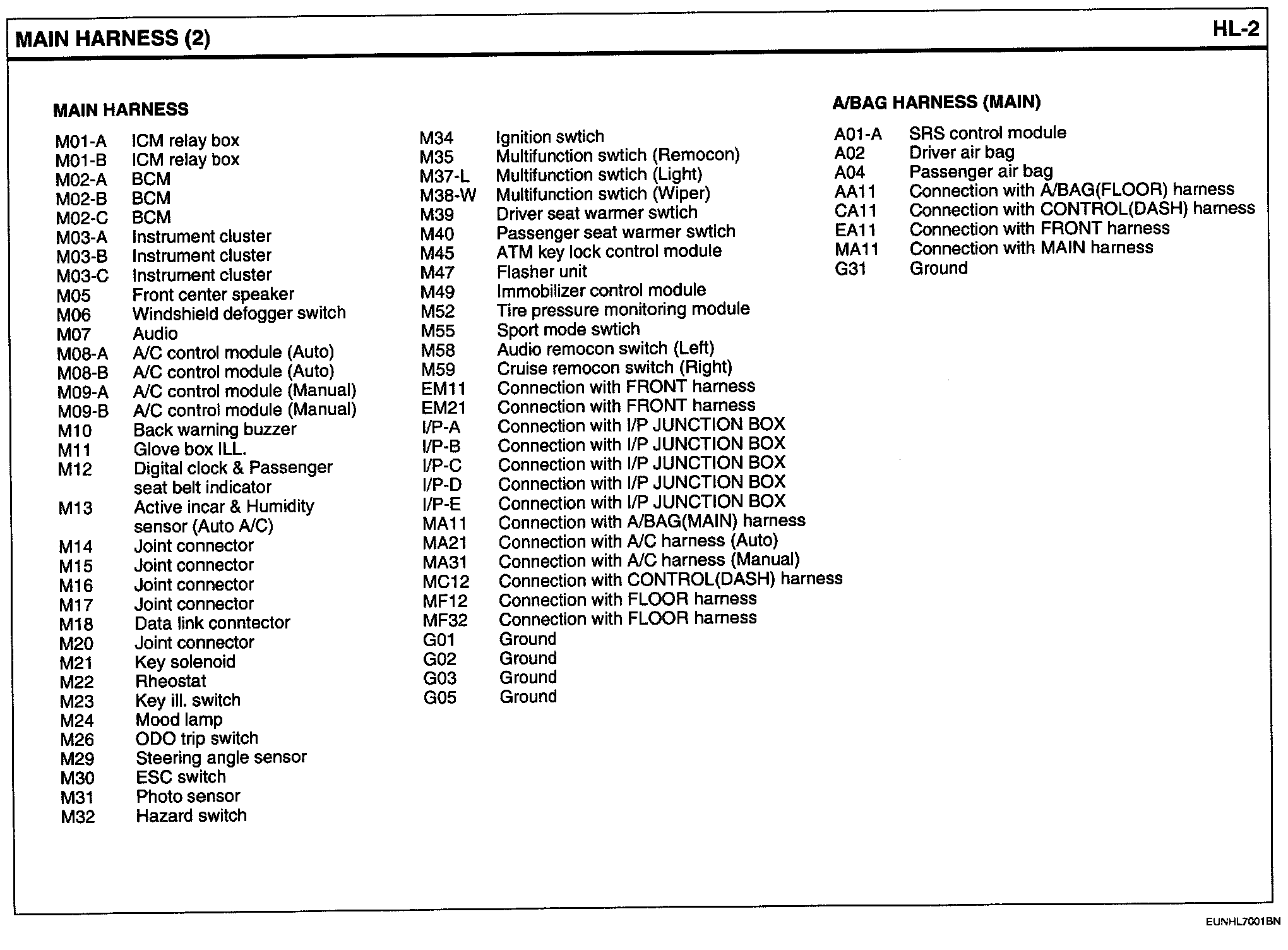

Main Harness (2):
