Chart 1

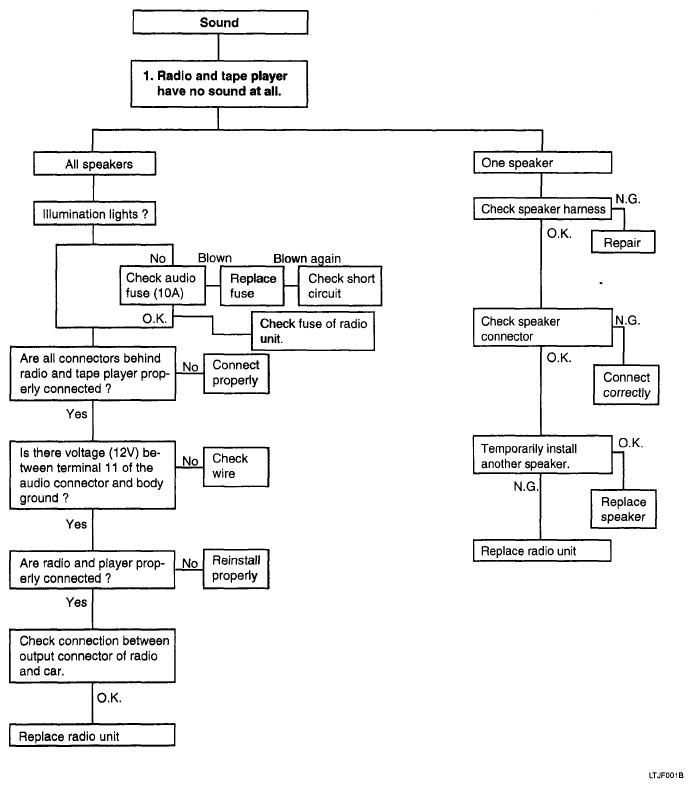

Fig 1: Troubleshooting Flow Chart - Sound
G04884519Courtesy of KIA MOTORS AMERICA, INC.

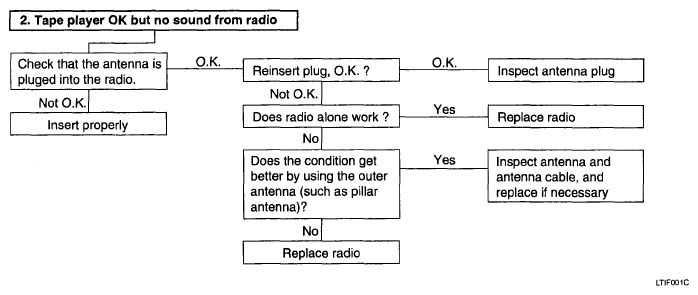

Fig 2: Troubleshooting Flow Chart - Tape Player OK But No Sound From Radio
G04806280Courtesy of KIA MOTORS AMERICA, INC.
