Chart 5

CD WILL NOT BE ACCEPTED

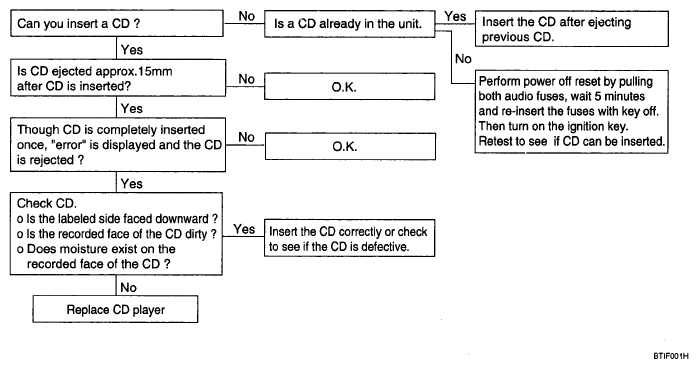

Fig 1: Troubleshooting Flow Chart - CD Will Not Be Accepted
Courtesy of KIA MOTORS AMERICA, INC.
NO SOUND

Fig 2: Troubleshooting Flow Chart - No Sound
Courtesy of KIA MOTORS AMERICA, INC.
CD SOUND SKIPS
1. Sound sometimes skips when parking.

  Fig 3: Troubleshooting Flow Chart - CD Sound Skips
  Courtesy of KIA MOTORS AMERICA, INC.
2. Sound sometimes skips when driving.
  (Stop vehicle, and check it.)

  (Check by using a CD which is free of scratches, dirt or other damage.)

  Fig 4: Troubleshooting Flow Chart - CD Sound Skips
  Courtesy of KIA MOTORS AMERICA, INC.
SOUND QUALITY IS POOR

Fig 5: Troubleshooting Flow Chart - Sound Quality Is Poor
Courtesy of KIA MOTORS AMERICA, INC.
CD WILL NOT EJECT

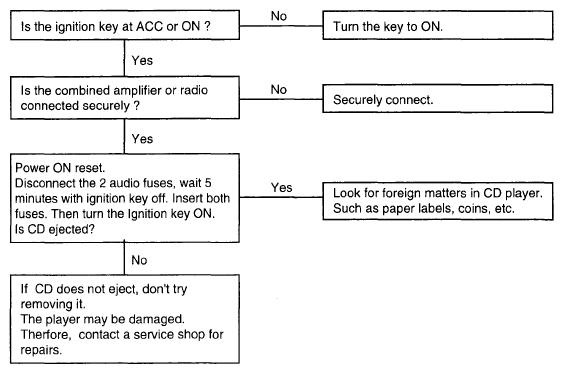

Fig 6: Troubleshooting Flow Chart - CD Will Not Eject
Courtesy of KIA MOTORS AMERICA, INC.
NO SOUND FROM ONE SPEAKER

Fig 7: Troubleshooting Flow Chart - No Sound From One Speaker
Courtesy of KIA MOTORS AMERICA, INC.
