Checking Flow

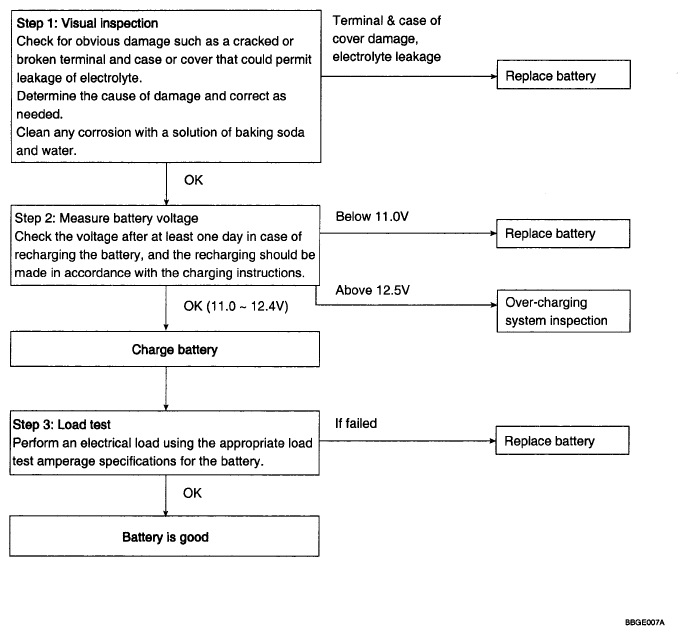

Fig 1: Battery Diagnostic Test Flow Diagram
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
