Component Location

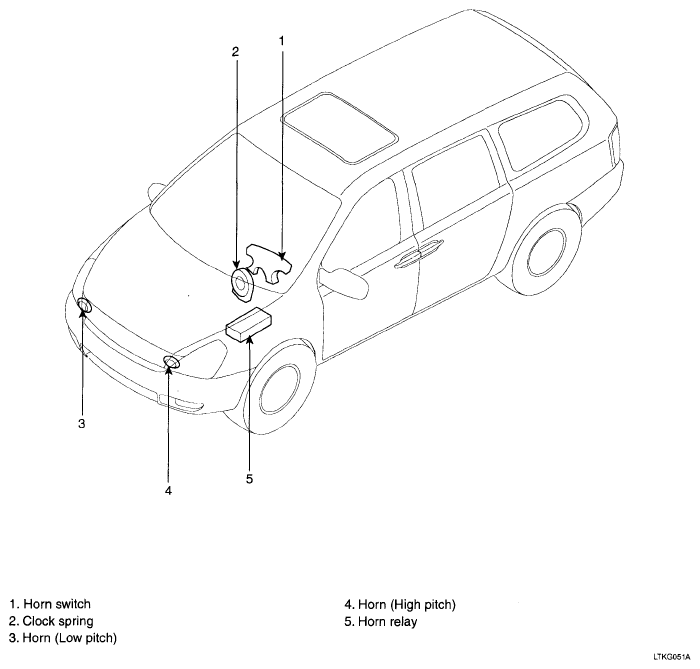

Fig 1: Identifying Horn System Component Locations
G04884554Courtesy of KIA MOTORS AMERICA, INC.
