Home >> Kia >> 2007 >> Sedona Base >> Repair and Diagnosis >> Restraints >> Restraints Control Systems >> Restraints - General >> Components >> Notes
September 30: LEMON manuals is back up on a temporary server! Slowness is possible

Restraints - General: Components: Notes

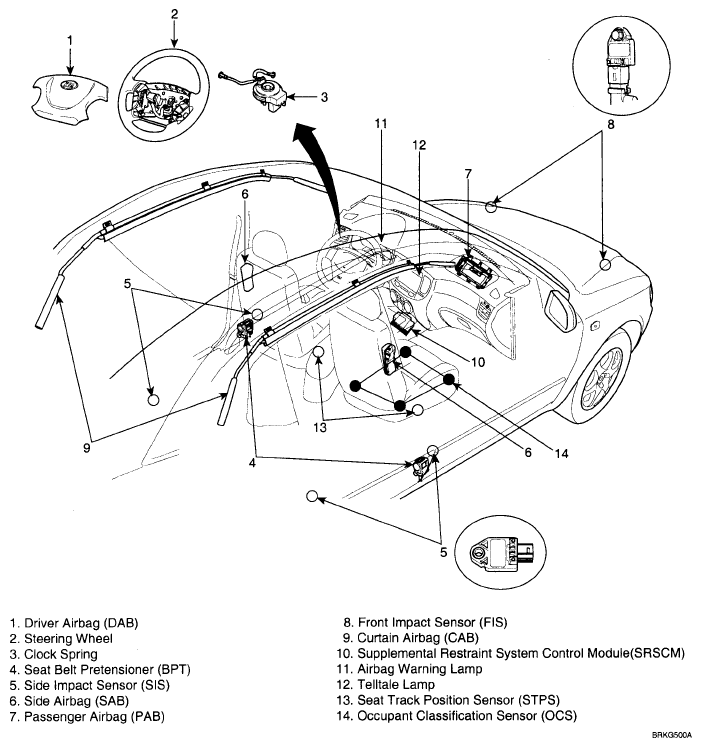

Fig 1: Identifying Restraints System Components
G04882745Courtesy of KIA MOTORS AMERICA, INC.
