Automatic Trans
>>
Automatic Transaxle System
>>
Mechanical System
>>
Automatic Transaxle Hydraulic Circuit
>>
R Range
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
R Range

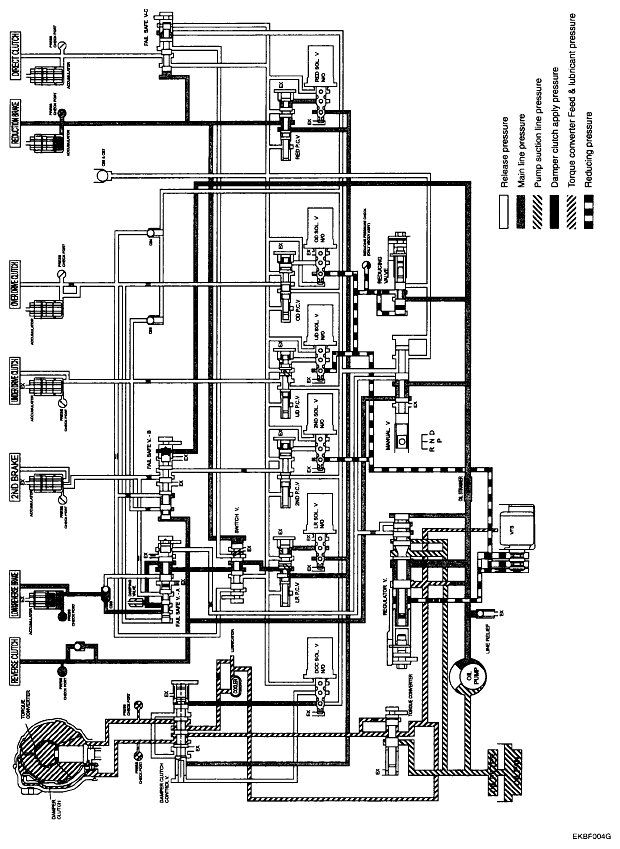

Fig 1: Automatic Transaxle Hydraulic Circuit Diagram - Range
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
