Memory Positioning Systems: Service and Repair

REPLACEMENT

1. Disconnect the negative (-) battery terminal.
2. Remove the seat back.

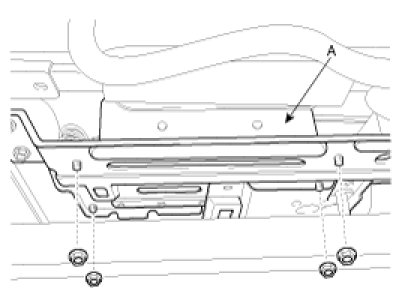

3. Remove the power seat module after removing the power seat module mounting nuts (4EA) and connector (3EA).




4. Installation is the reverse of removal.
