Engine Control Module




POWERTRAIN CONTROL MODULE (PCM)

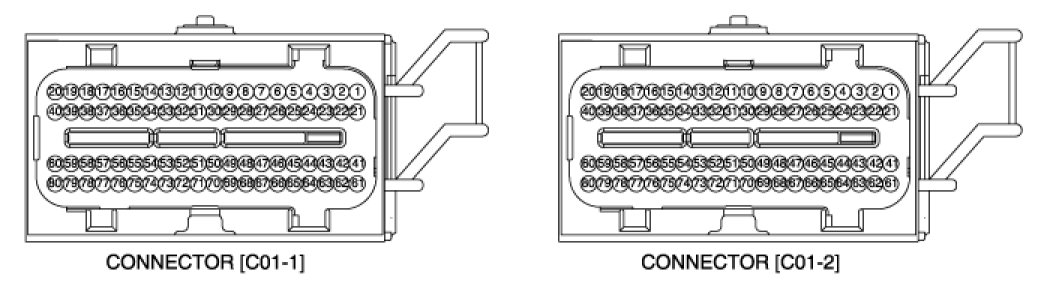

1. PCM HARNESS CONNECTOR

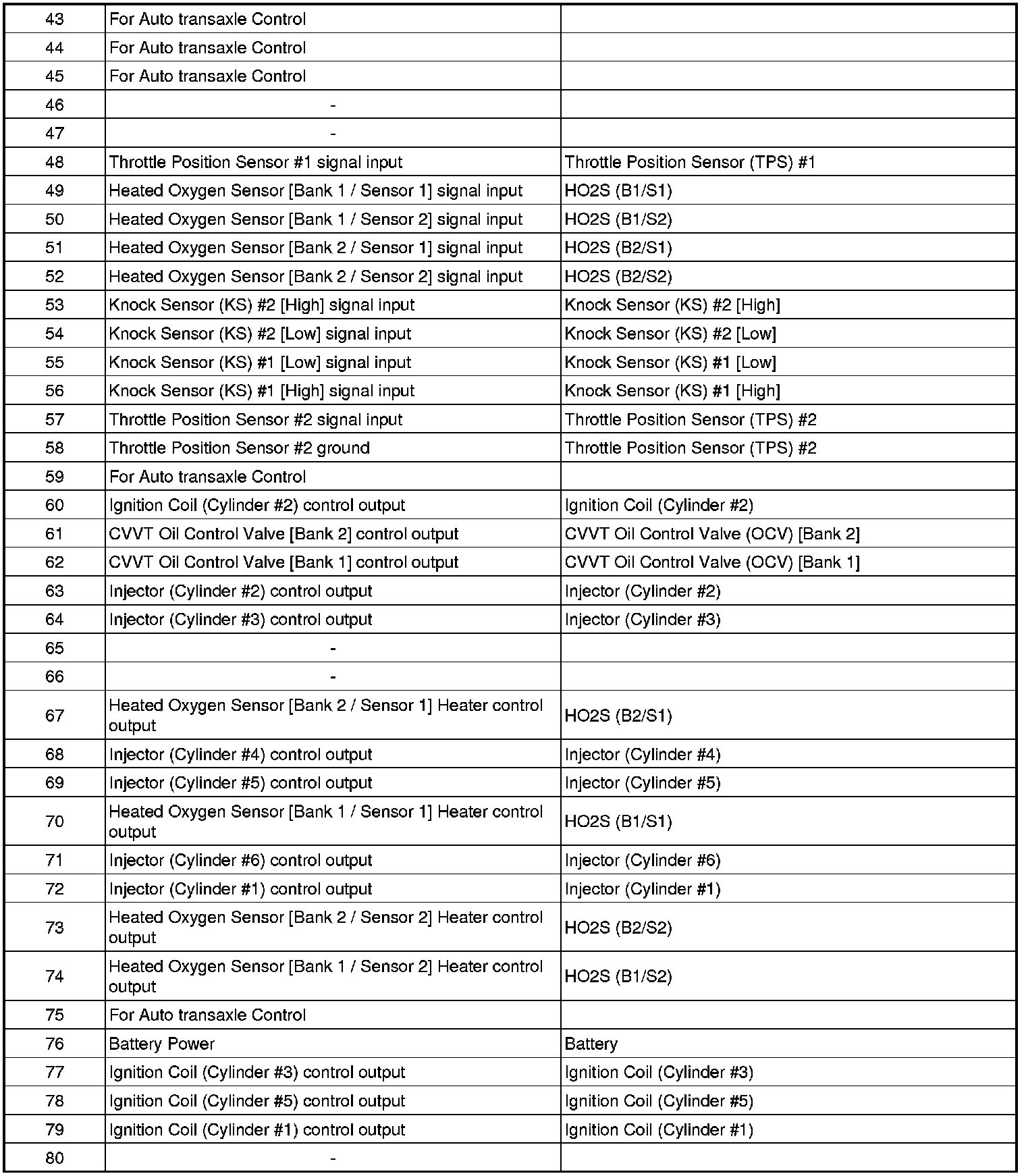

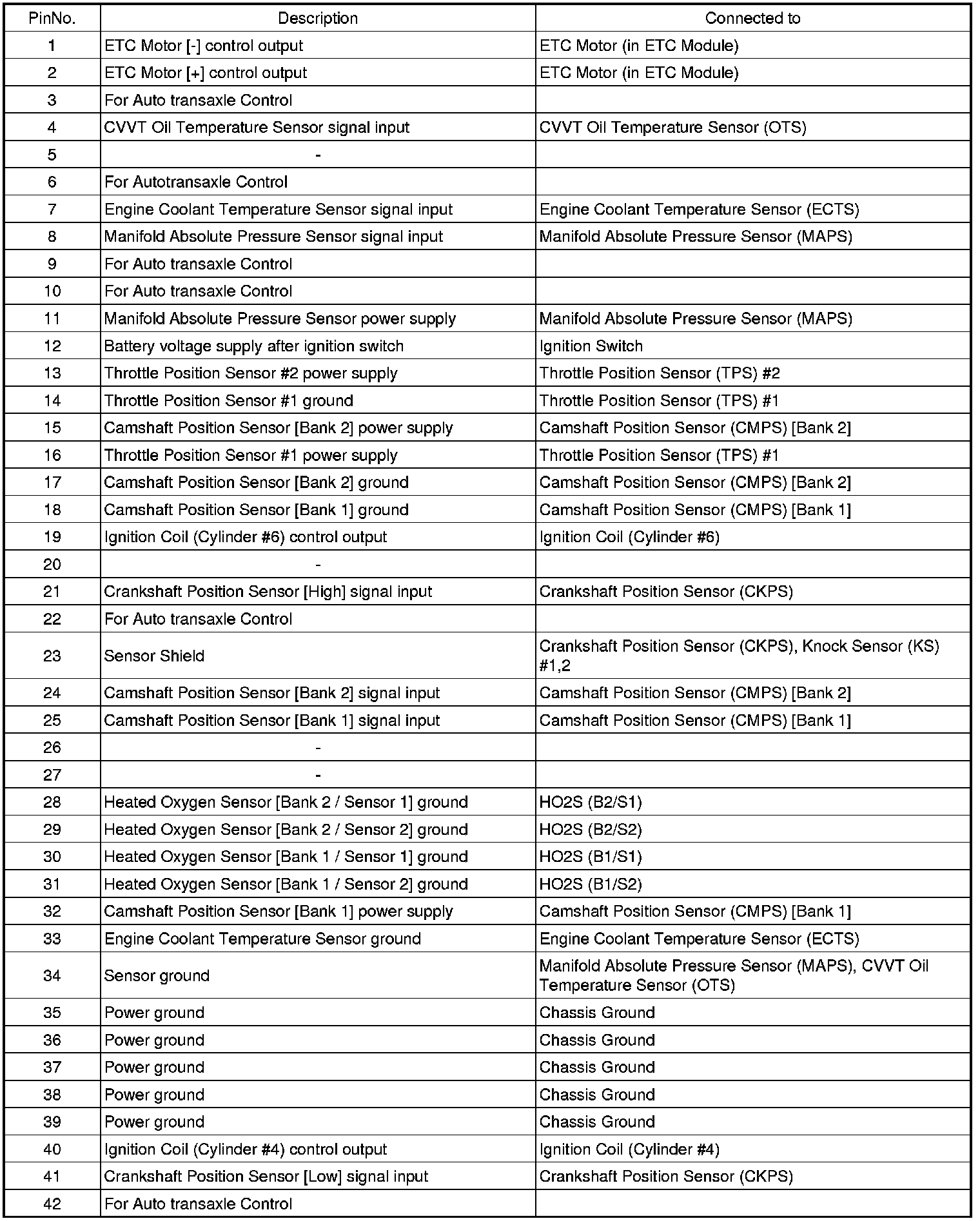

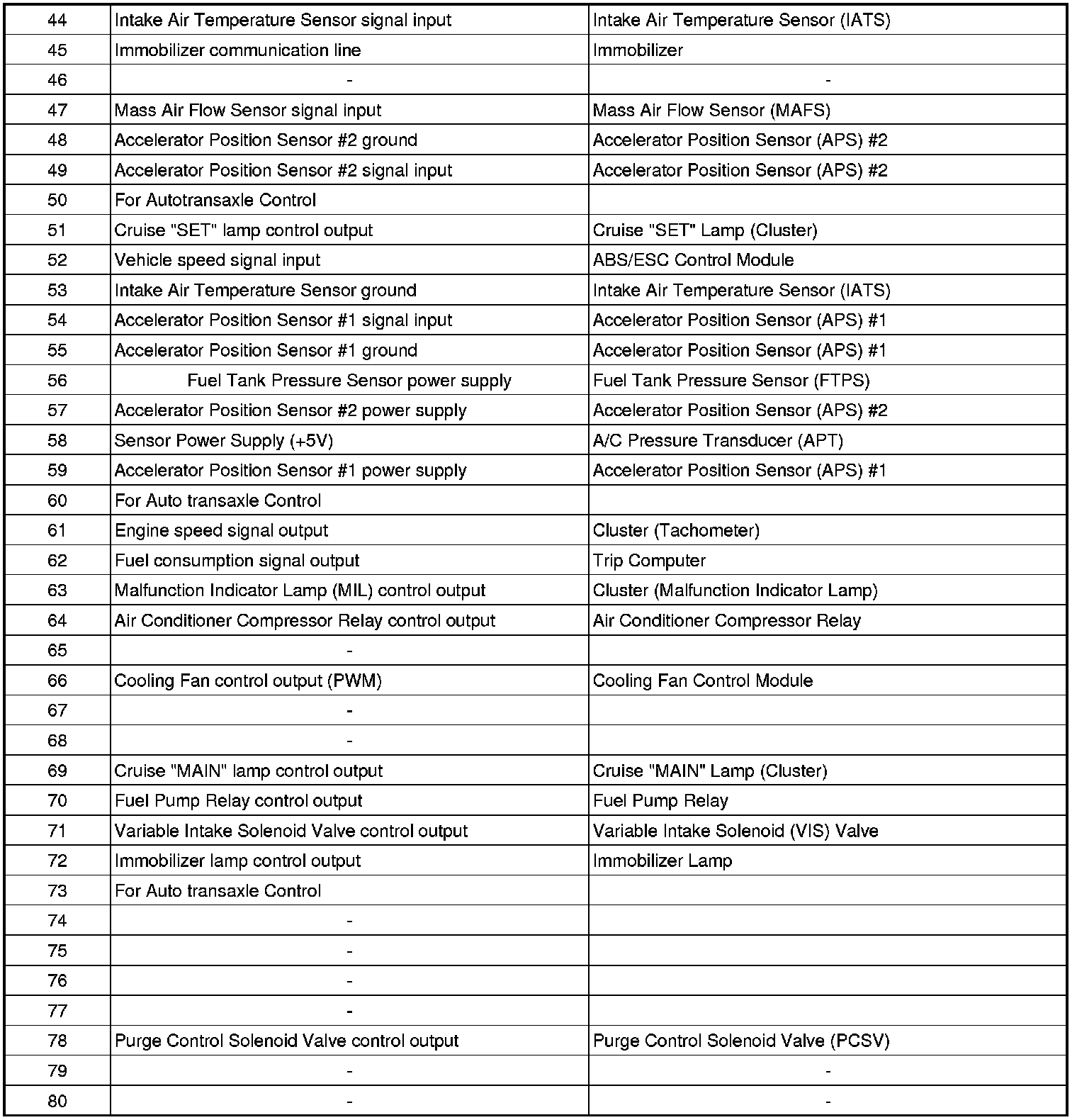

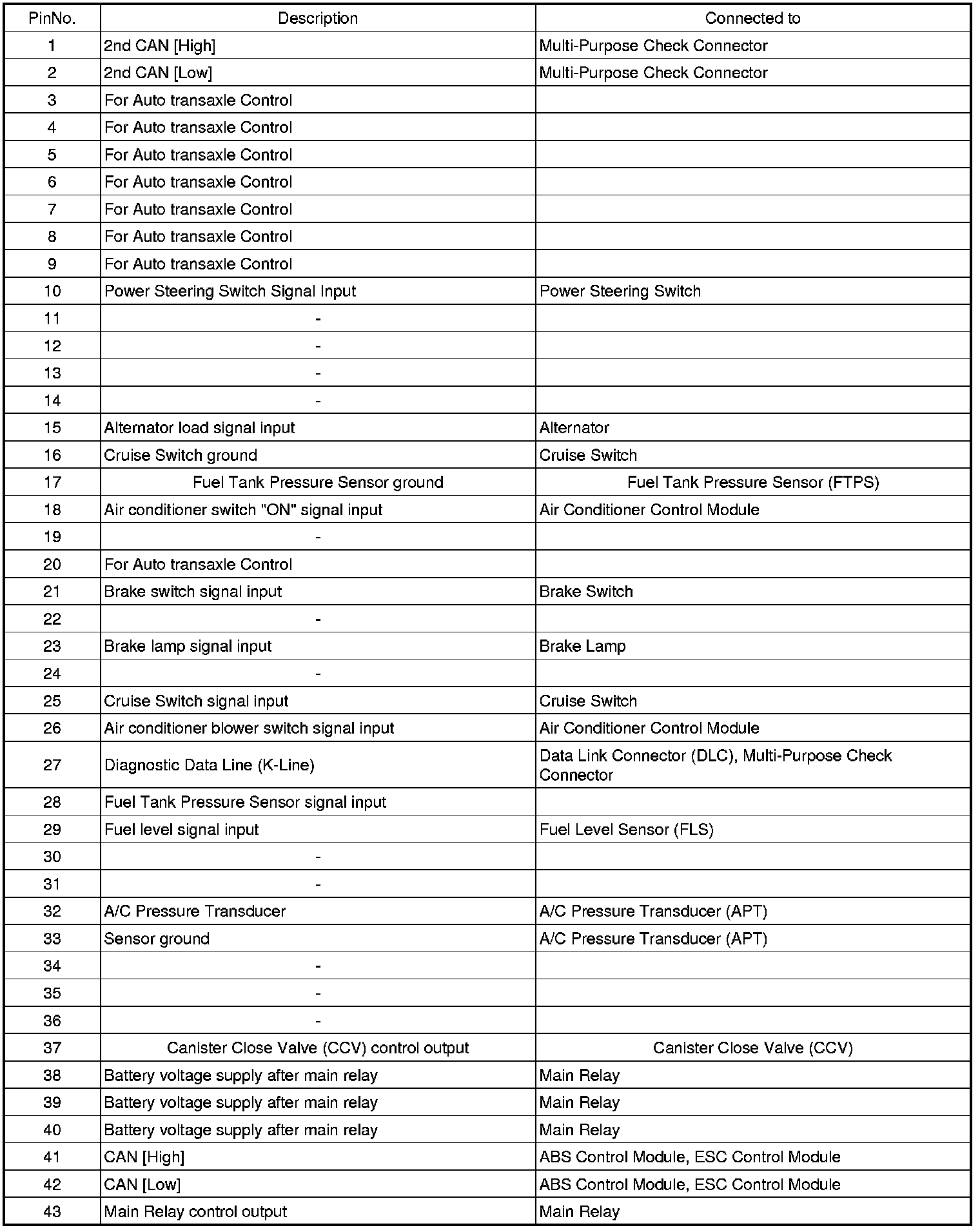

2. PCM TERMINAL FUNCTION
CONNECTOR [C01-1]









CONNECTOR [C01-2]

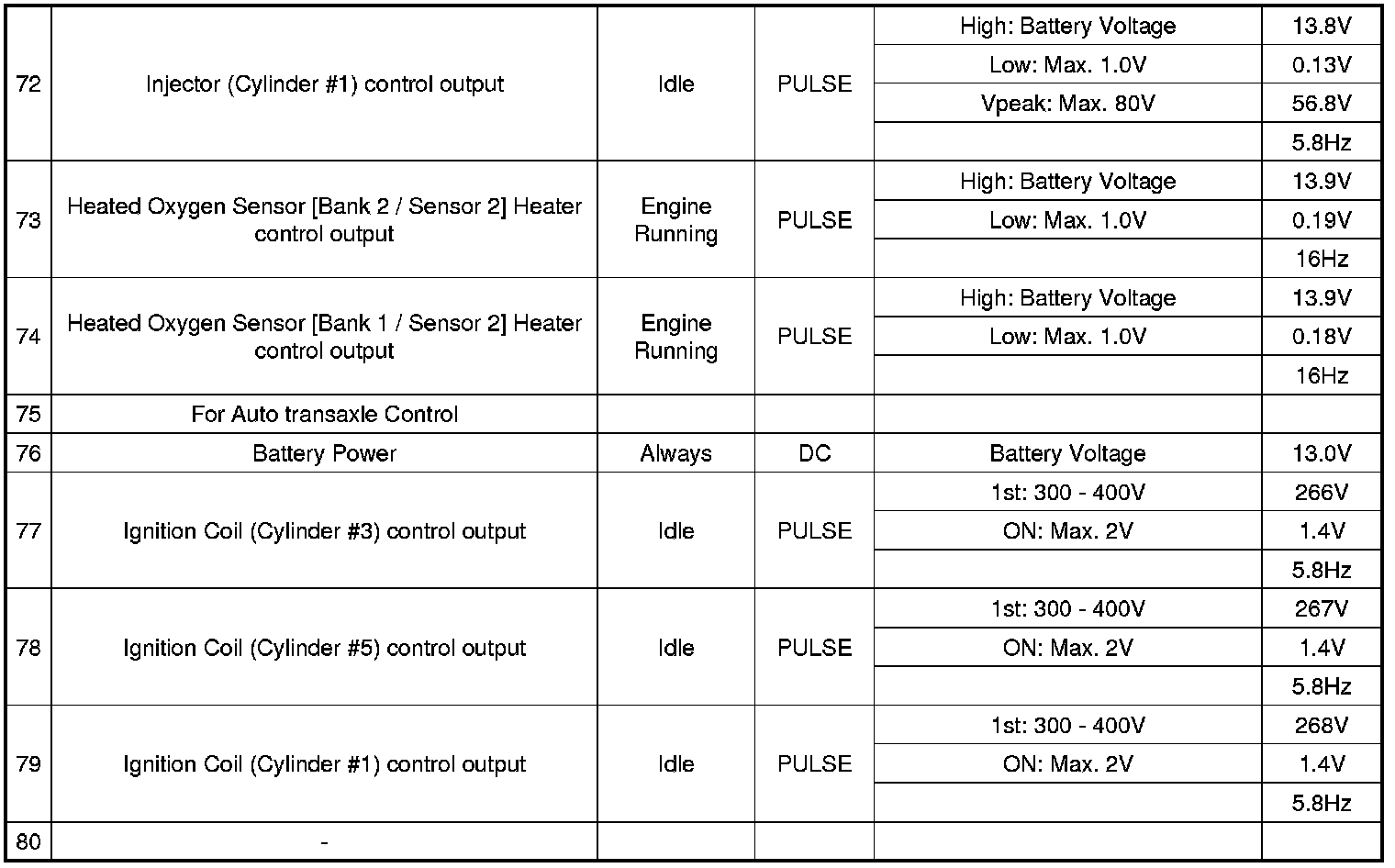

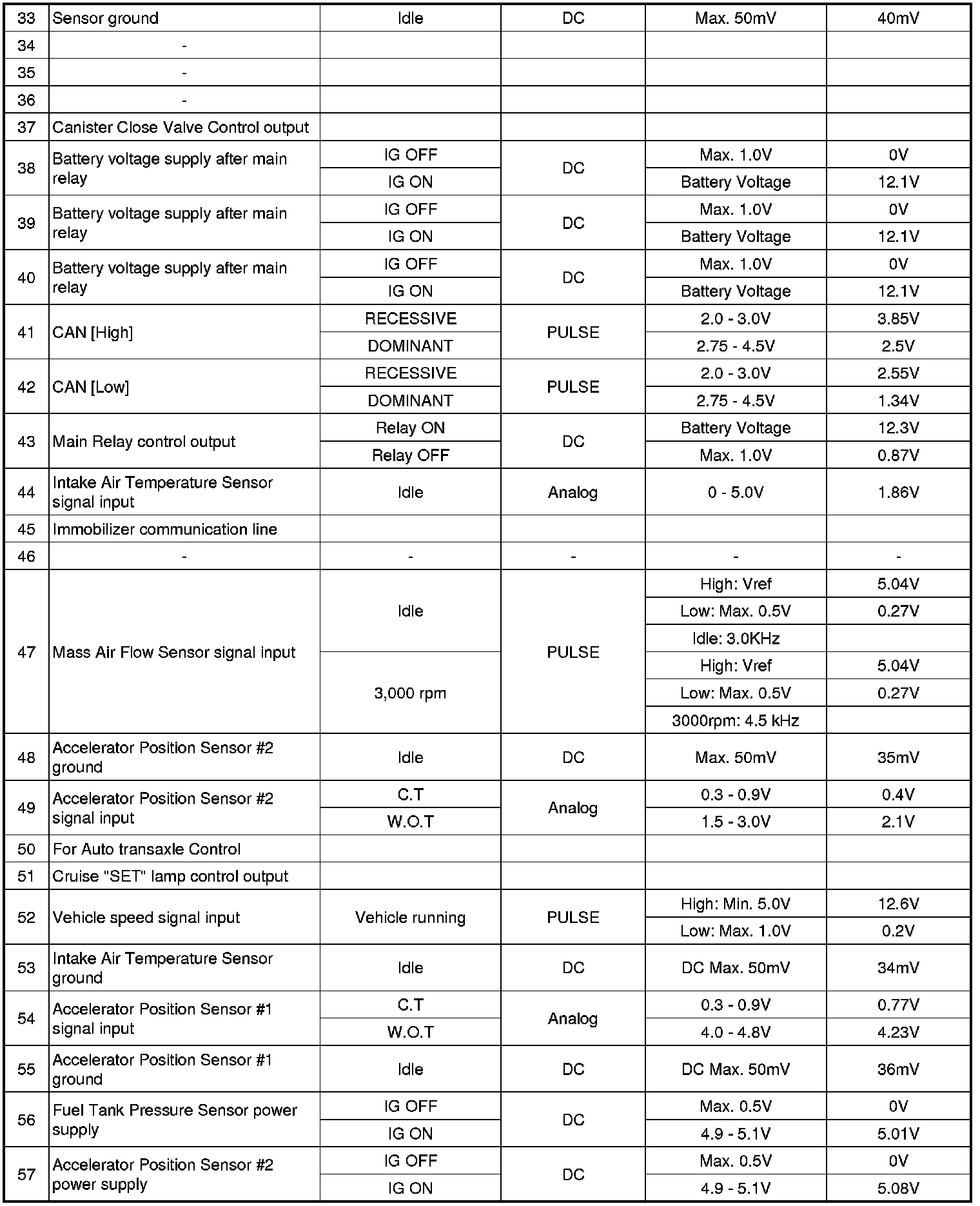

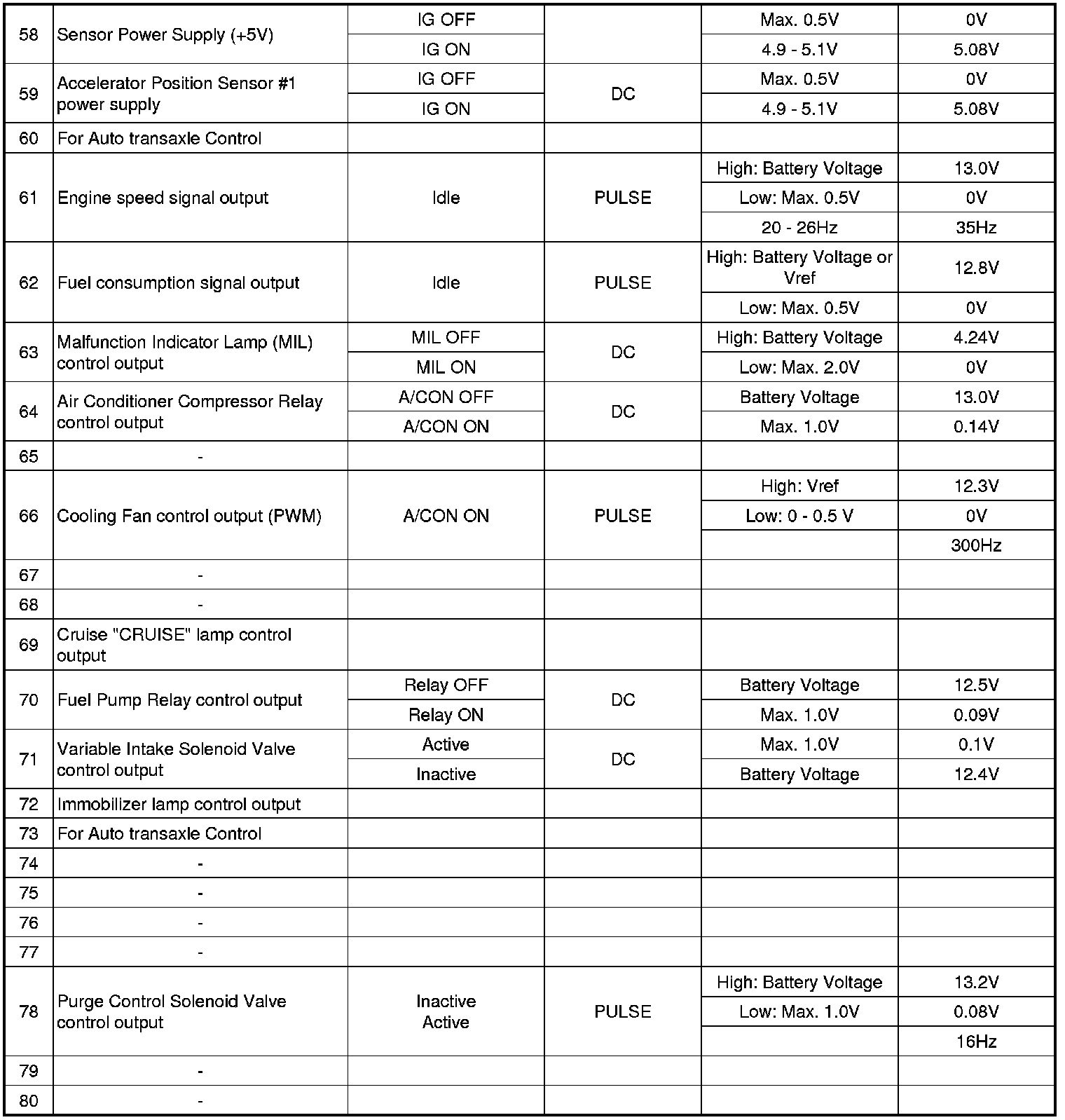

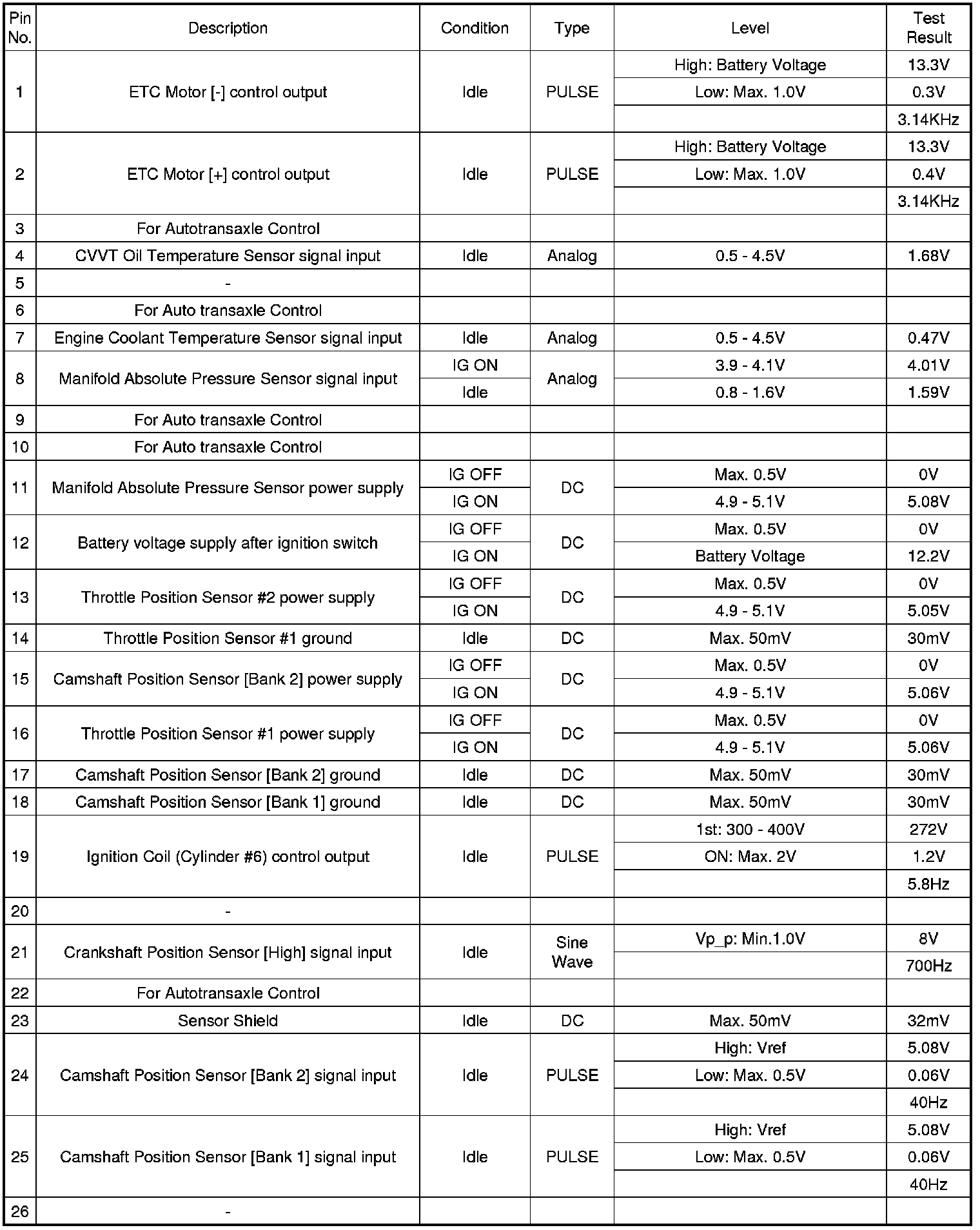

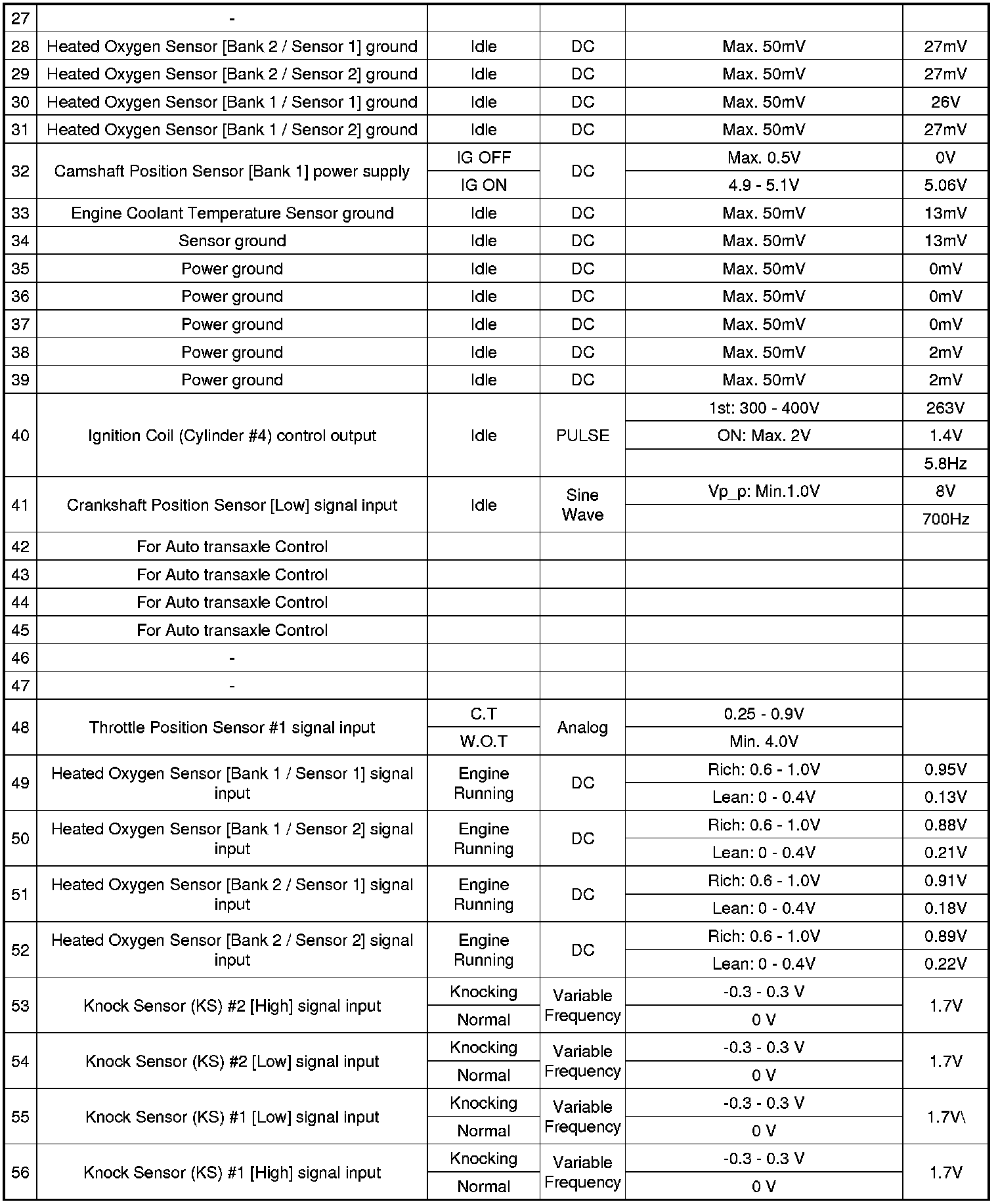

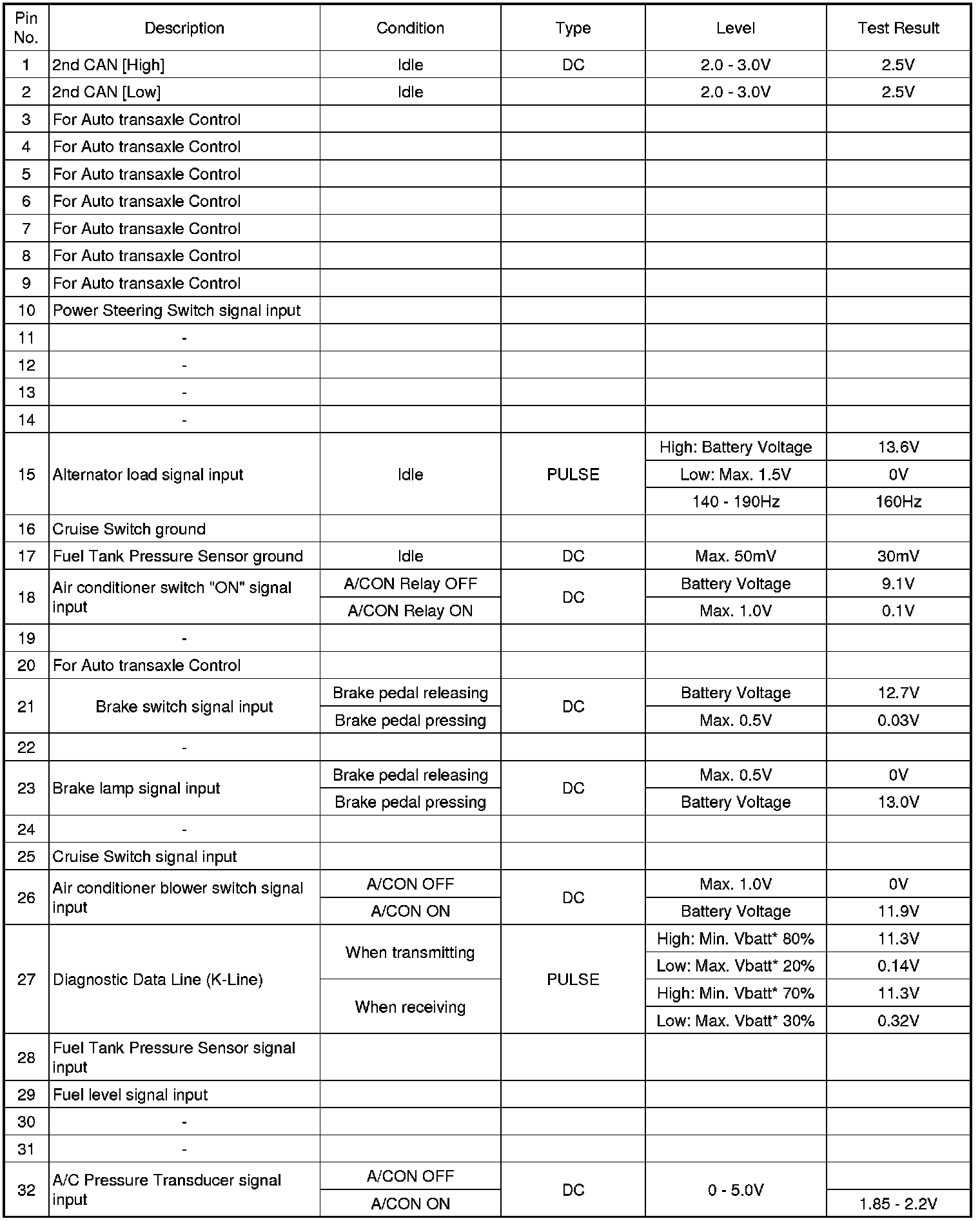

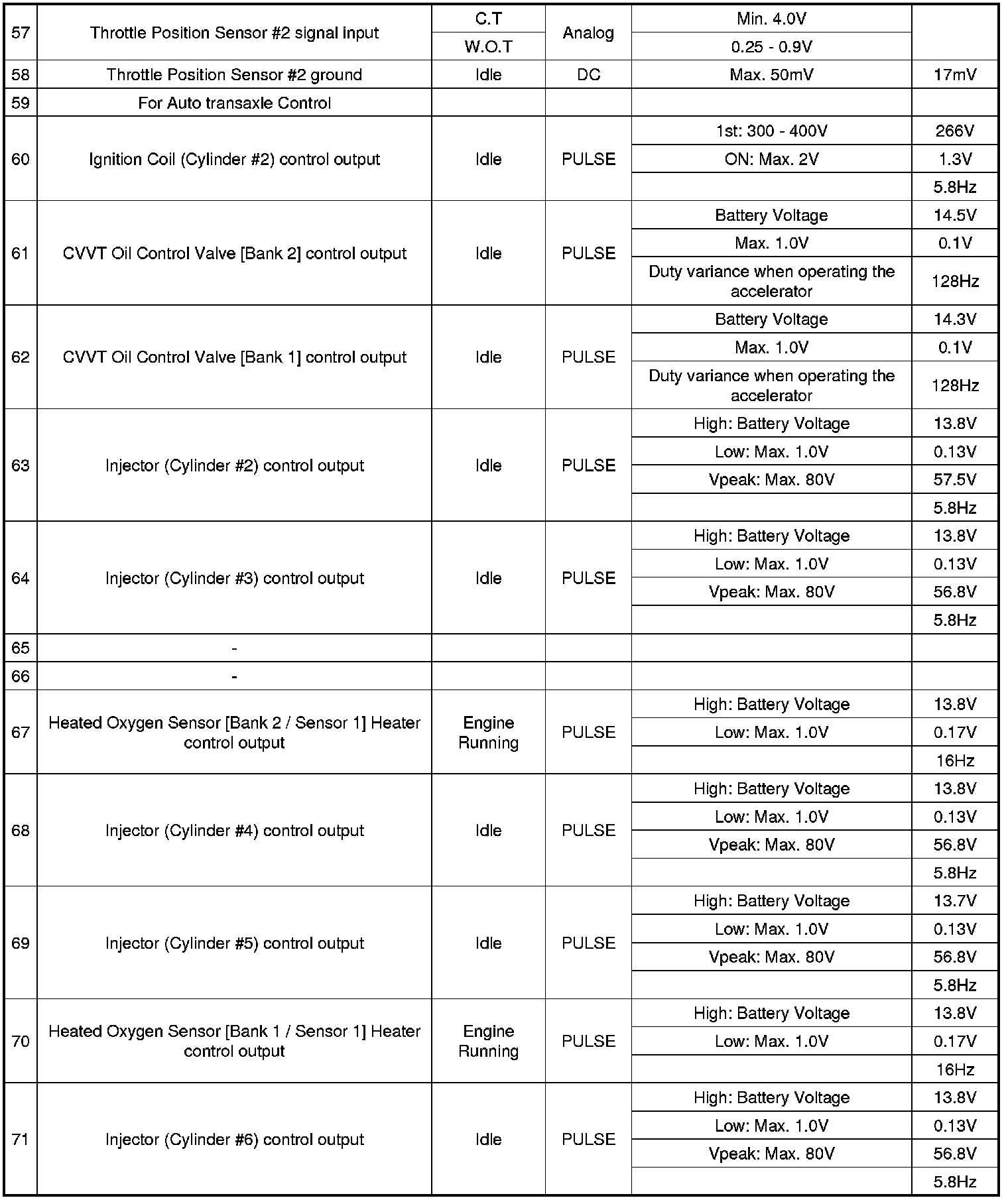

3. PCM TERMINAL INPUT/OUTPUT SIGNAL
CONNECTOR [C01-1]













CONNECTOR [C01-2]
