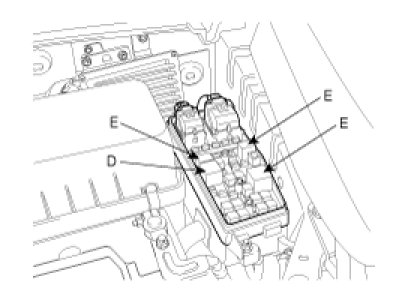

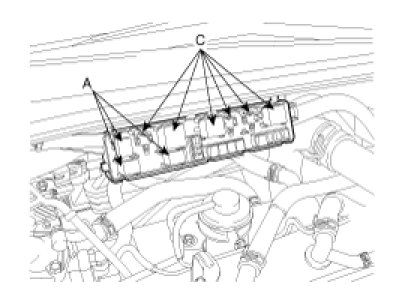

Relay Box (Engine Compartment)

INSPECTION

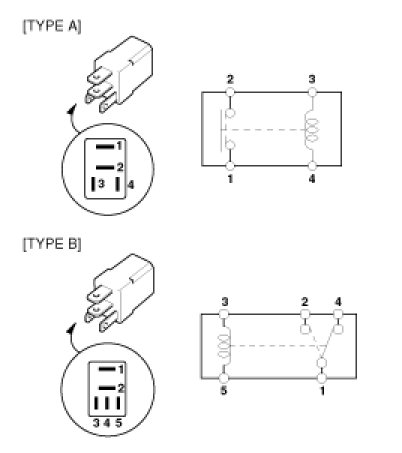

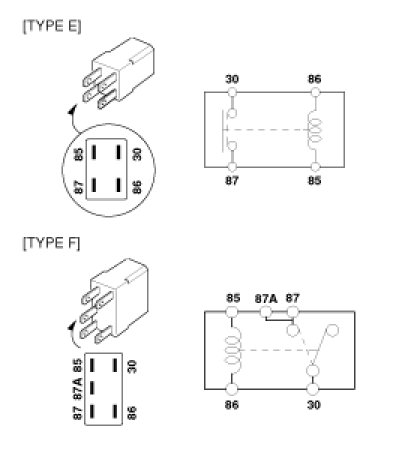

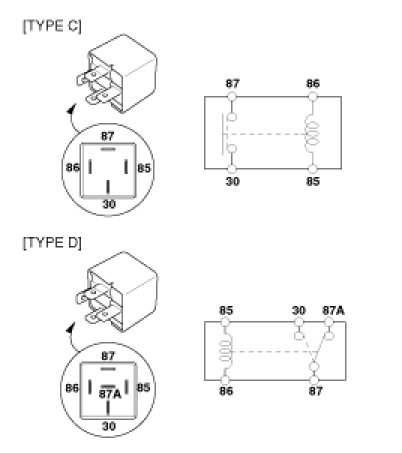

RELAY
1. Be sure that the relays are held the each module securely.
2. Are the relay types for each circuit correct?
























3. If system of some relay is not operate accurately, replace with a new one and check the system.
