System Specifications

SPECIFICATIONS





O.D=Outer Diameter
I.D=Inner Diameter

NOTE:
ABS : Anti-lock Brake System
ESC : Electronic Stability Control

SERVICE STANDARD

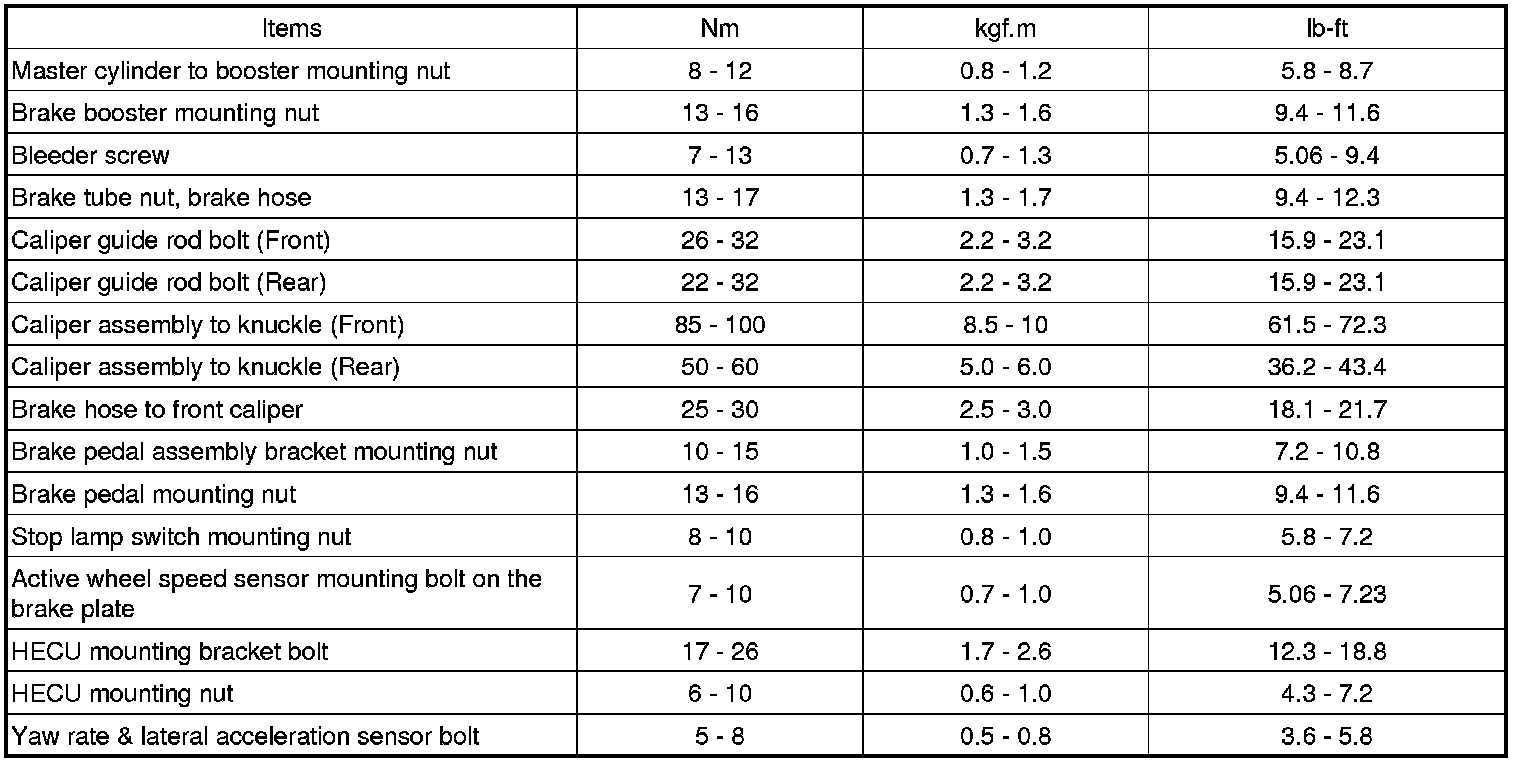

TIGHTENING TORQUE






SPECIFICATION (ABS)

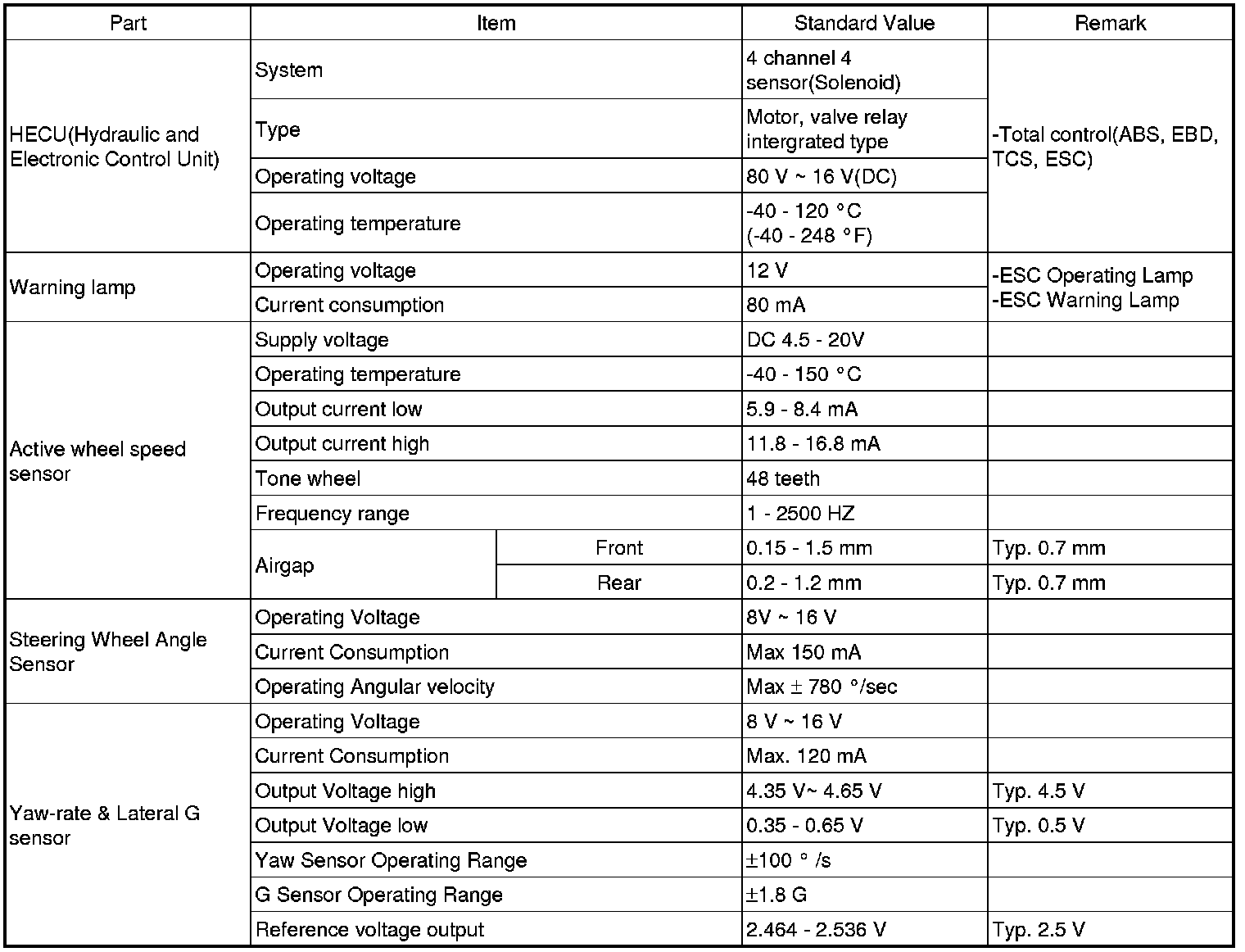

SPECIFICATION(ESP)





Front Brake disc run out limit 0.03 mm (0.0012 in.) or less (new one)
Rear Brake disc run out Limit 0.05 mm (0.002 in) or less (new one)
