Cylinder Head
Note: "Head Bolts are Reusable"

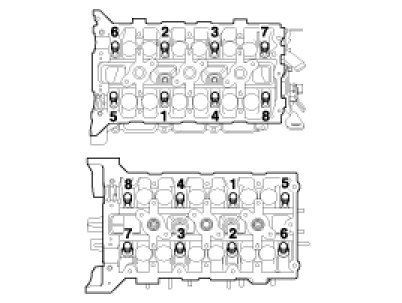

Cylinder Head Torque and Sequence
Tightening torque
1st step 37.3 - 41.2 Nm (3.8 - 4.2kgf.m, 27.5 - 30.4 ft. lbs.)
2nd step 120° ± 2°
3rd step 90° ± 2°
Note: "Head Bolts are Reusable"
Cylinder Head Torque and Sequence
Tightening torque
1st step 37.3 - 41.2 Nm (3.8 - 4.2kgf.m, 27.5 - 30.4 ft. lbs.)
2nd step 120° ± 2°
3rd step 90° ± 2°
