Oil Pump
Oil Pump
Tightening torque
19.6 - 23.5 Nm (2.0 - 2.4 kgf.m, 14.5 - 17.4 lb-ft)

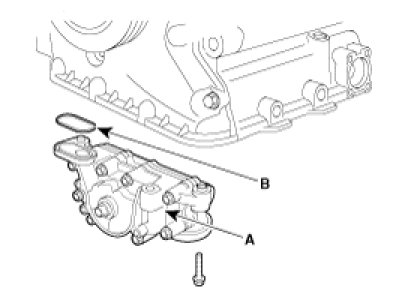

NOTE:
Always use a new O-ring(B).
