Electronic Brake Control Module: Testing and Inspection

ECU CONNECTOR INPUT / OUTPUT (ABS)

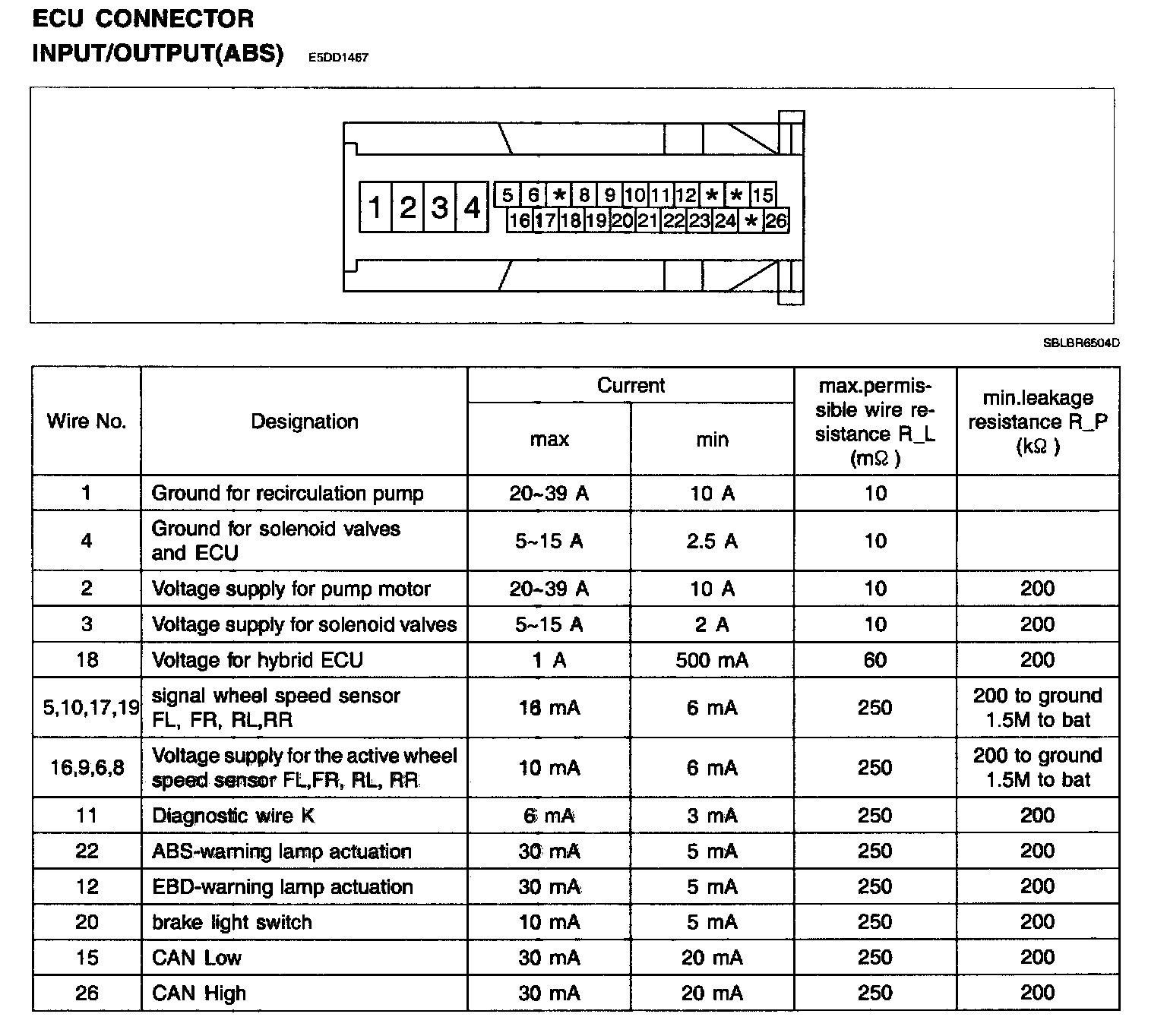

ECU Connector Input/Output (ABS):

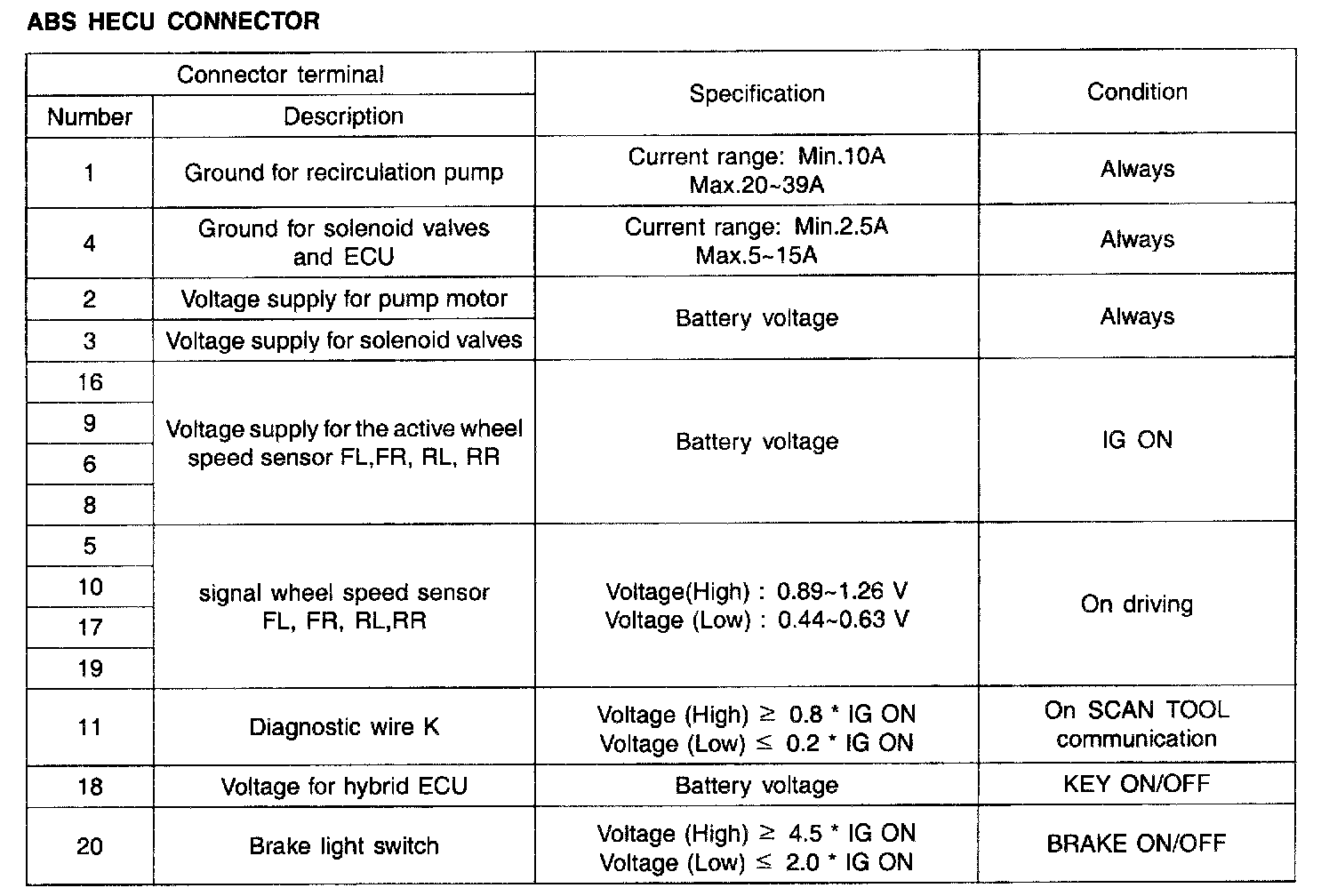

ABS HECU Connector:

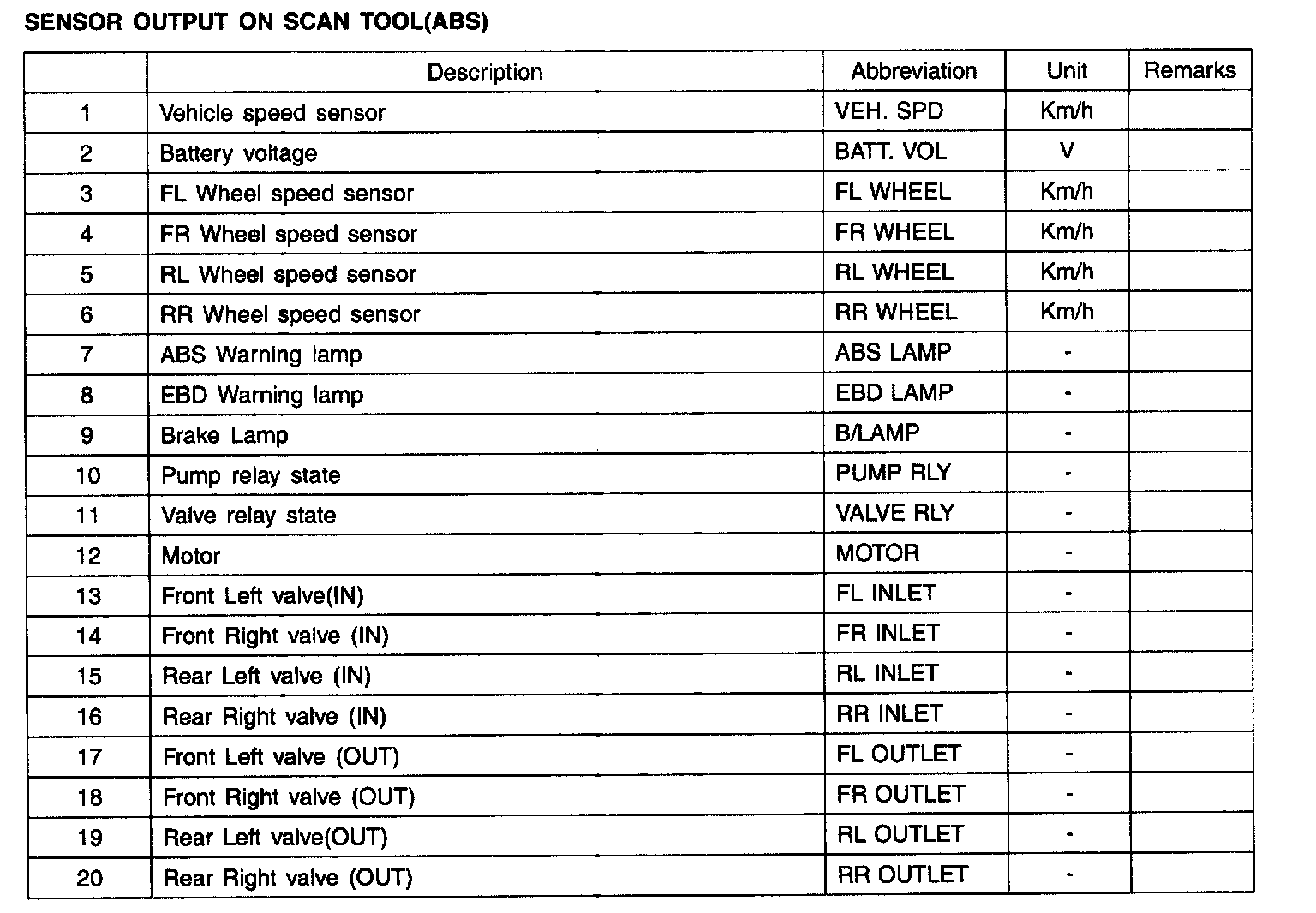

Sensor Output On Scan Tools (ABS):
