Water Pump

Water Pump

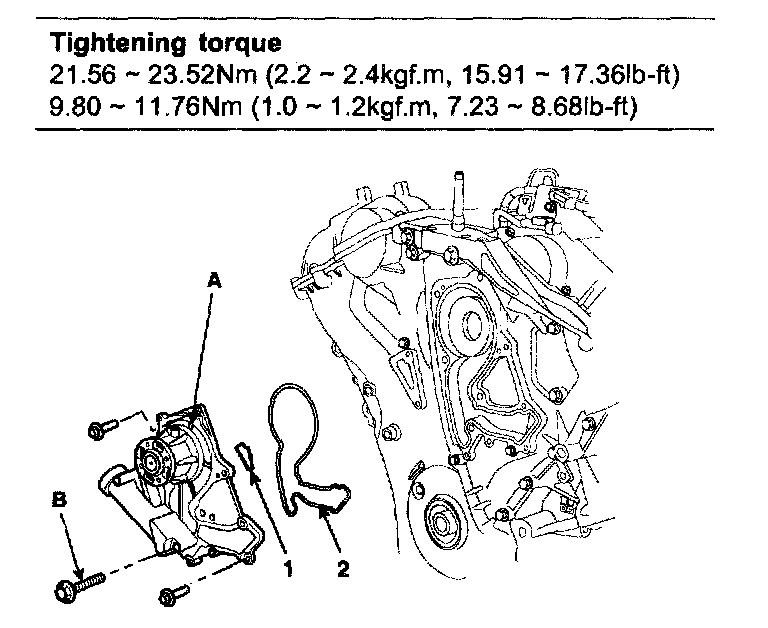

NOTE
^ Make clean the contact face before assembly.
^ When replacing a water pump, always use new gasket(1, 2).
^ When reassembling a water pump, replace the bolt(B) with a new one.
