Power Window Sub Switch

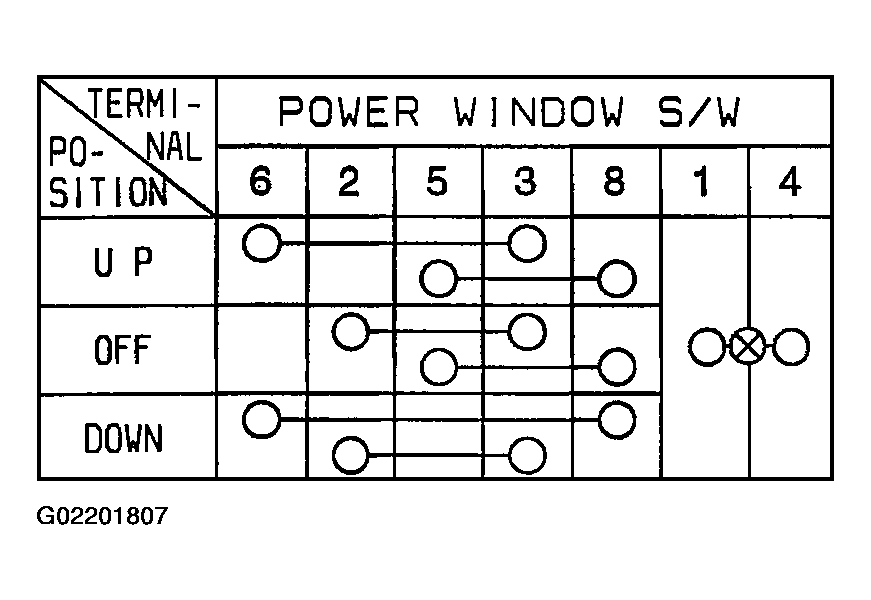

Fig 1: Checking Power Window Sub Switch Operation
Courtesy of KIA MOTORS AMERICA, INC.
Fig 2: Identifying Power Window Sub Switch Pin Outs
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
