Charging System: Alternator: Components

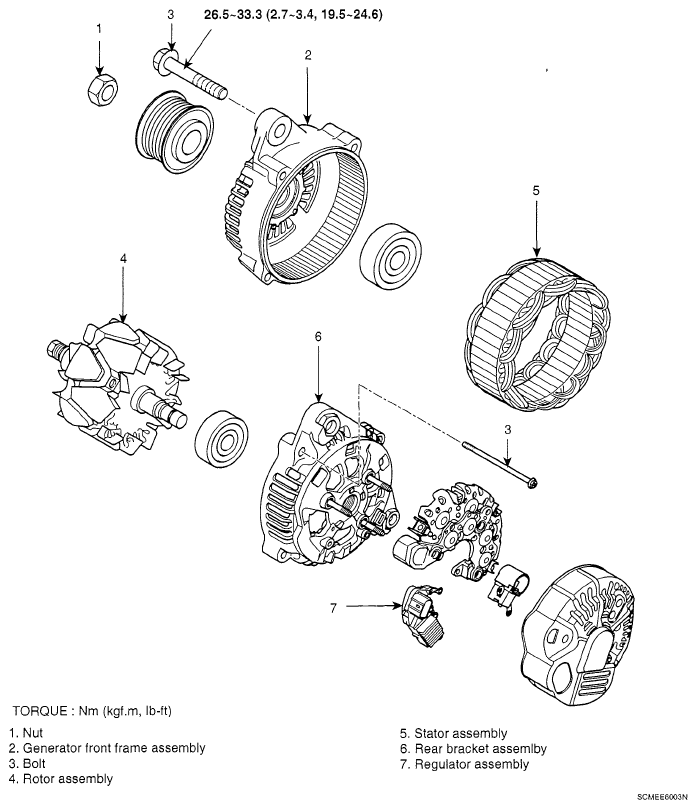

Fig 1: Alternator Replacement Components With Torque Specifications
G05118188Courtesy of KIA MOTORS AMERICA, INC.
