Starting System: Starter: Components

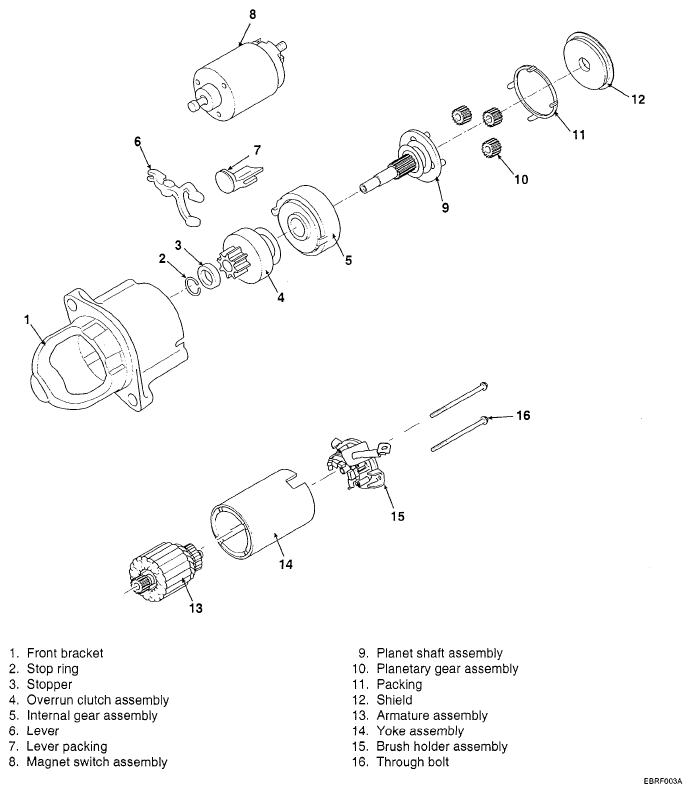

Fig 1: Identifying Starter Components

G05118219

Courtesy of KIA MOTORS AMERICA, INC.
