Audio Unit: Components

Fig 1: Identifying Audio Unit Components (1 Of 2)
G05119760Courtesy of KIA MOTORS AMERICA, INC.

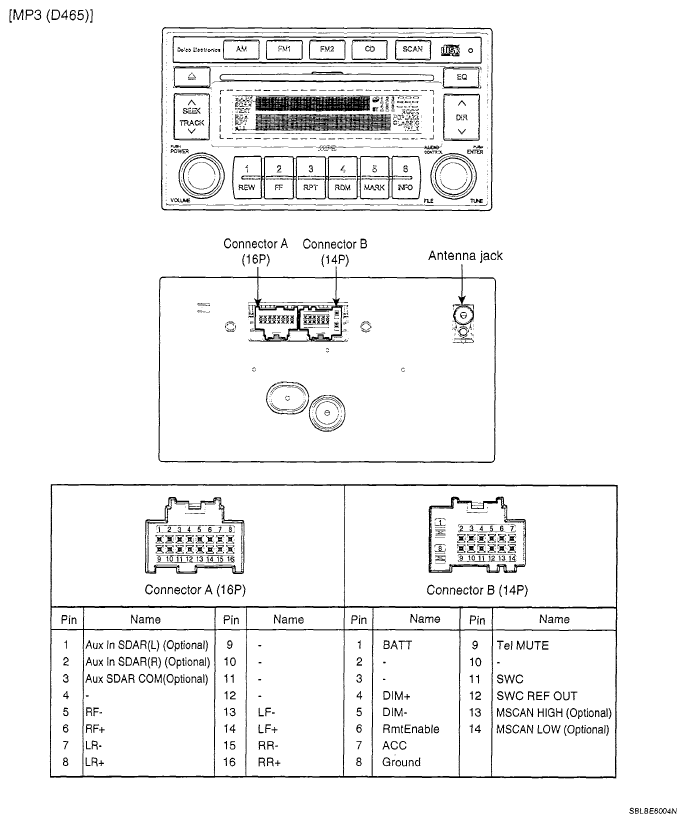

Fig 2: Identifying Audio Unit Components (2 Of 2)
G05119761Courtesy of KIA MOTORS AMERICA, INC.
