Audio Remote Control: Inspection

  1. Check for resistance between No. 2 and No. 4 terminals in each switch position.

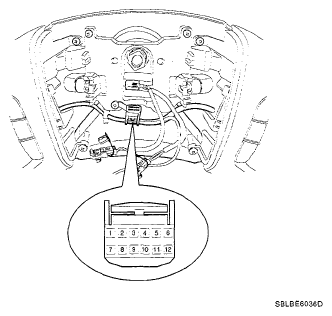

    Fig 1: Identifying Switch Terminals
    G05119779Courtesy of KIA MOTORS AMERICA, INC.
    SWITCH TERMINALS SPECIFICATIONS

    Switch name Connector terminal Resistance (±5%)
    VOLUME DOWN 2 - 4 6.81 kΩ
    VOLUME UP 2 - 4 4.61 kΩ
    MODE 2 - 4 2.11 kΩ
    SEEK DOWN 2 - 4 1.11 kΩ
    SEEK UP 2 - 4 430 Ω
