Component Location

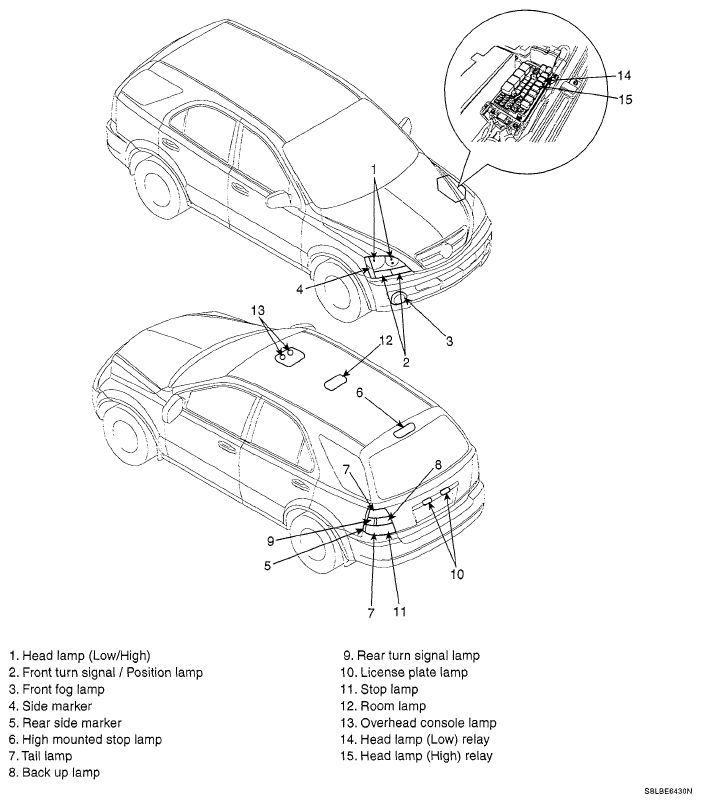

Fig 1: Identifying Lighting System Components
Courtesy of KIA MOTORS AMERICA, INC.
