Sorento Base, A5SR2
>>
Repair and Diagnosis
>>
Engine Performance
>>
Engine Control Systems
>>
Gasoline Engine Control System
>>
CVVT Oil Control Valve (OCV)
>>
Inspection
>>
Schematic Diagram
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Schematic Diagram

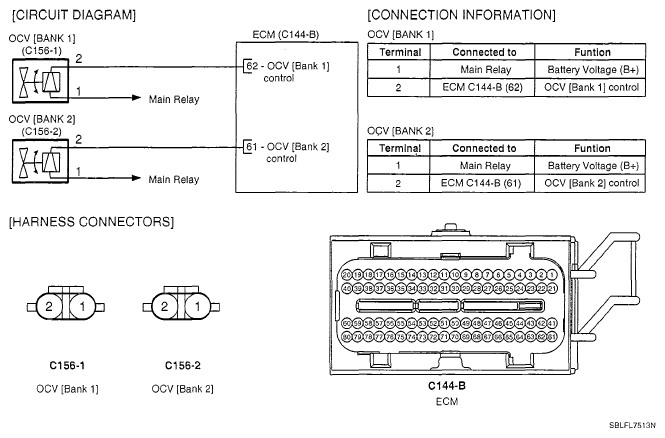

Fig 1: Identifying OCV Connector & Circuit Diagram
Courtesy of KIA MOTORS AMERICA, INC.
