Monitor Scan Tool Data

WARNING: This page is about a different variant/trim than selected.
  1. Connect scan tool to data link connector (DLC).
  2. Ignition "ON" & Engine "OFF".
  3. Monitor the "TRANSMISSION RANGE SWITCH" parameter on the scan tool.
  4. Move selector lever from "P" range to "D" range.

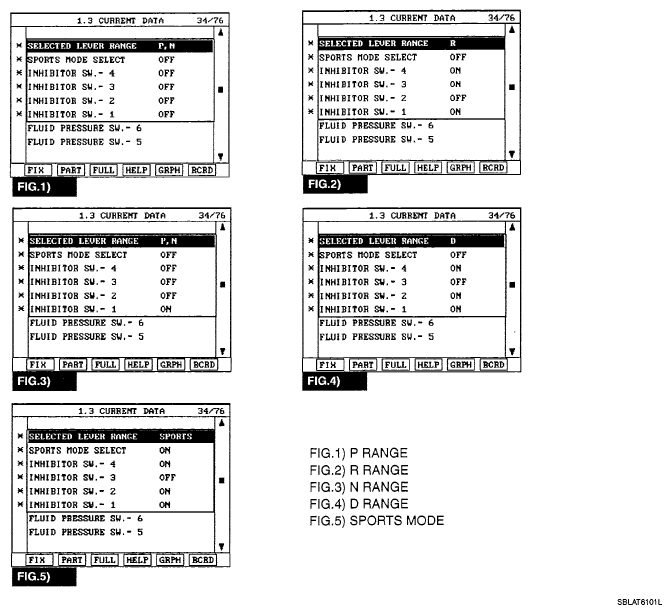

    Fig 1: Scan Tool Display - Selected Lever Range
    G05119209Courtesy of KIA MOTORS AMERICA, INC.
  5. Does "TRANSMISSION RANGE SWITCH" follow the reference data?

    YES

    • Fault is intermittent caused by poor contact in the sensor's and/or PCM/TCM's connector or was repaired and PCM/TCM memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration or damage. Repair or replace as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.

    NO
