Component Inspection
WARNING: This page is about a different variant/trim than selected.
- Check "TURBINE SENSOR 2"
- Ignition "ON" & Engine "OFF".
- Connect the "C106-3" connector.
- Measure Frequency between terminal "6" of the C106-3 harness connector and chassis ground.
Specification : See CONNECTOR PIN SPECIFICATION .
CONNECTOR PIN SPECIFICATIONNAME PIN NO Measurement condition Spec Turbine Sensor1 6 - 1st gear
- 12.42 MPH (20km/h)
- Idle SW OFF
Approx. 1.1K(Hz) Turbine Sensor 2 7 - 4th gear
- 31 MPH (50km/h)
- Idle SW OFF
CAUTION: Scan tool data link cable is maintain to connecting condition. - is frequency within specifications?
YES
- Go to "CHECK TCM " as below.
NO
- Replace "TURBINE SENSOR" as necessary and Go to "VERIFICATION OF VEHICLE REPAIR " procedure.
- CHECK TCM
- Ignition "ON" & Engine "OFF".
- Disconnect "C106-3" connector.

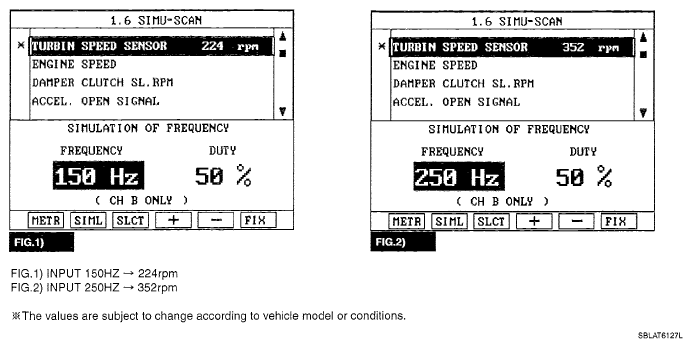

- Install scan tool and access "SIMU-SCAN" mode.
- Simulate frequency to TURBINE SENSOR 1 signal circuit.
- Is "TURBINE SENSOR 1" signal value changed according to simulation frequency?
YES
- Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
NO
- Substitute with a known-good TCM and check for proper operation. If the problem is corrected, replace TCM as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
