Automatic Transaxle System: Description: Components

WARNING: This page is about a different variant/trim than selected.

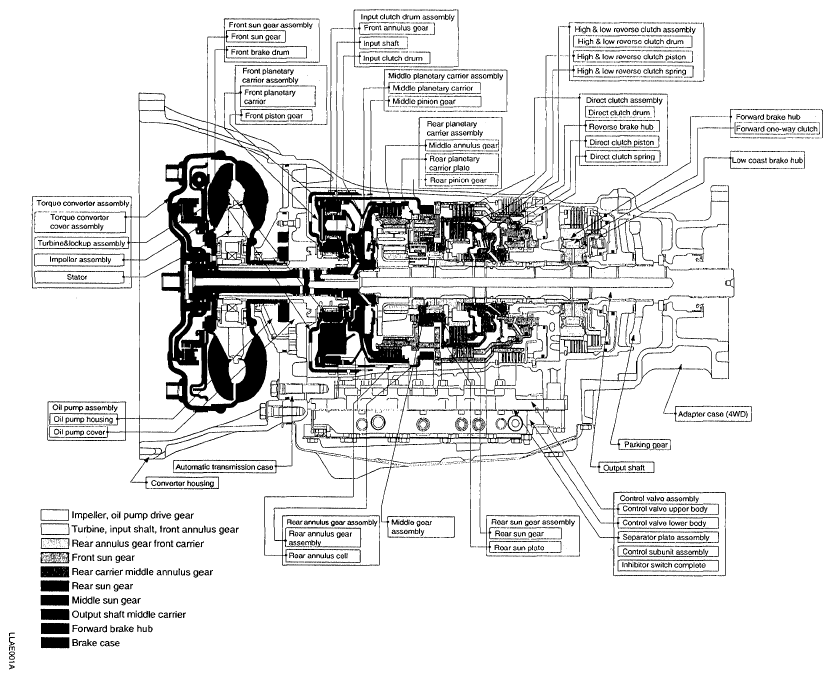

Fig 1: Identifying Automatic Transaxle System Components
G05119176Courtesy of KIA MOTORS AMERICA, INC.
