DTC P1725: Tod Control Module (Checksum)

Fig 1: DTC P1725 Description
G00332391Courtesy of KIA MOTORS AMERICA, INC.

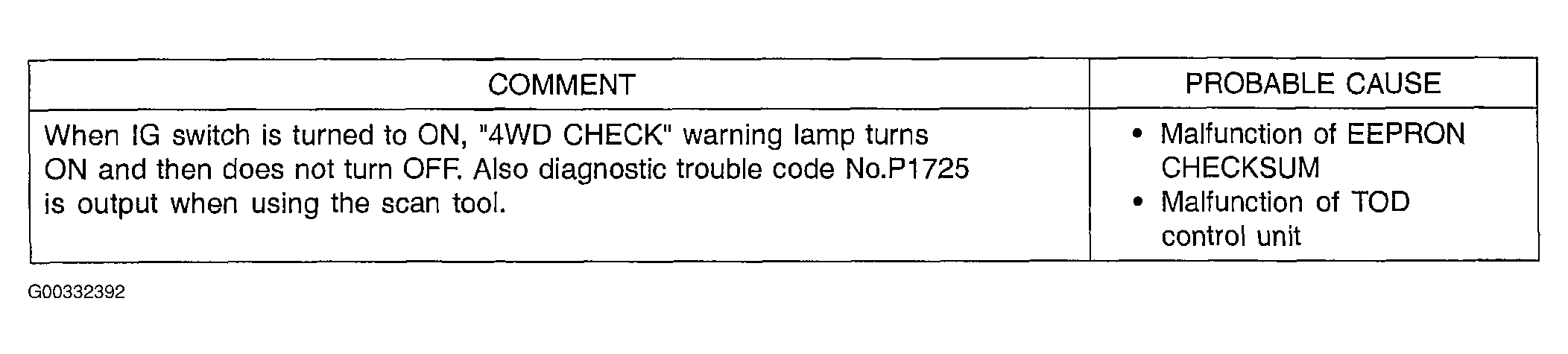

Fig 2: Conditions For Setting DTC P1725
G00332392Courtesy of KIA MOTORS AMERICA, INC.

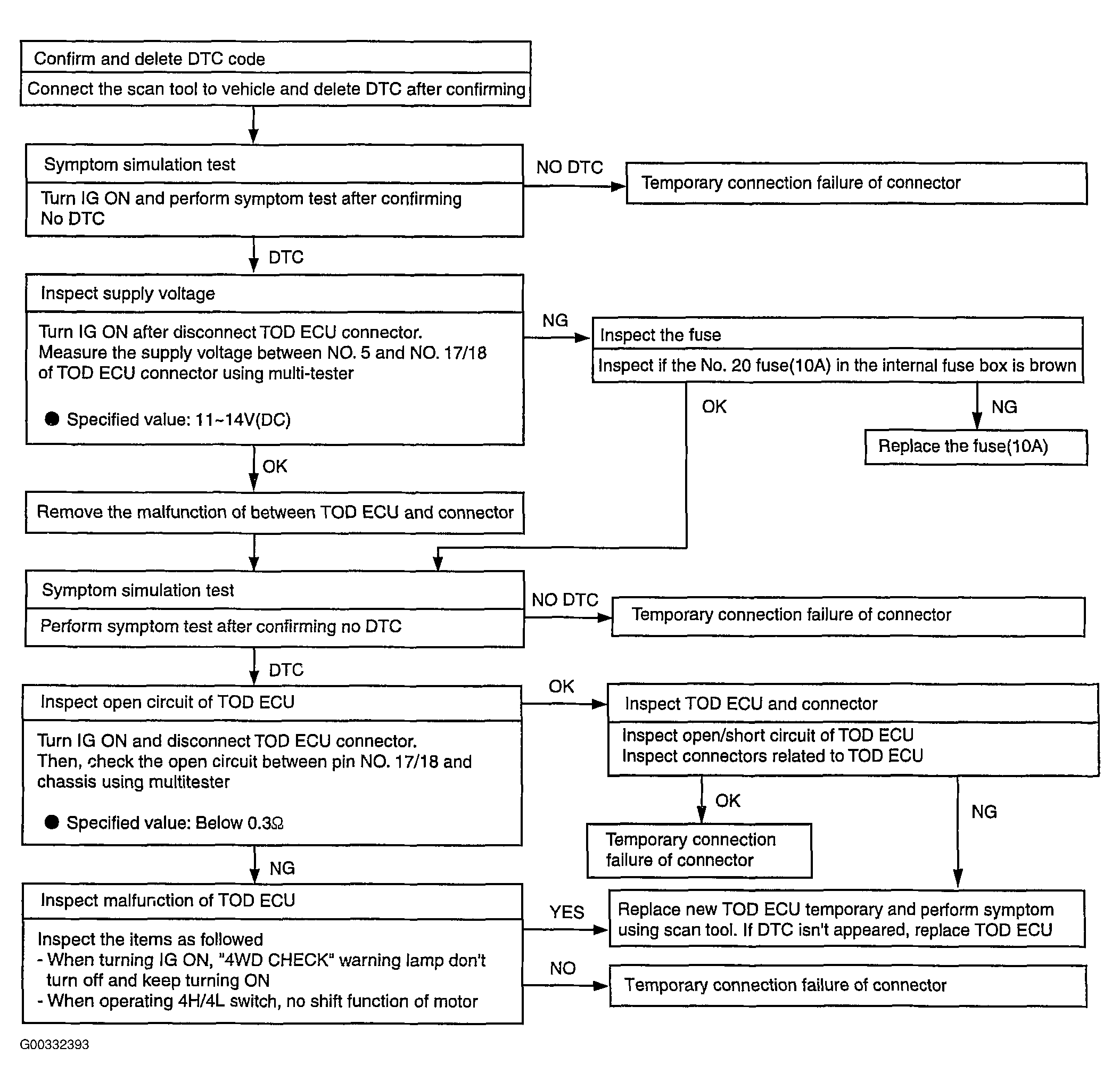

Fig 3: DTC P1725 Diagnostic Flow Chart
G00332393Courtesy of KIA MOTORS AMERICA, INC.
