Reassembly
REASSEMBLY
RELIEF PLUNGER

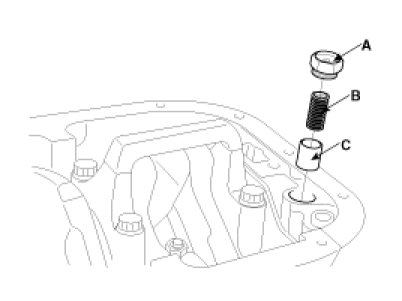

1. Install the relief plunger.
Install relief plunger(C) and spring(B) into the front case hole, and install the plug(A).
Tightening torque :
39.2 - 49.0N-m (4.0 - 5.0kg-m, 28.9 - 36.2lb-ft)
REASSEMBLY
RELIEF PLUNGER
1. Install the relief plunger.
Install relief plunger(C) and spring(B) into the front case hole, and install the plug(A).
Tightening torque :
39.2 - 49.0N-m (4.0 - 5.0kg-m, 28.9 - 36.2lb-ft)
