Disassembly











DISASSEMBLY

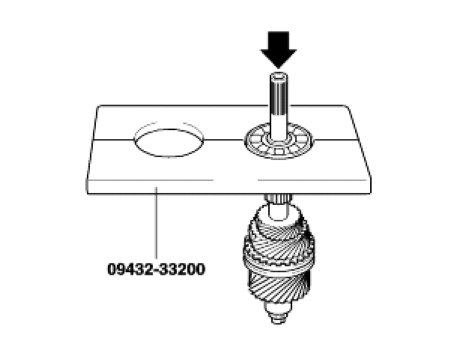

1. Remove the front bearing using the special tool(09432-33200).

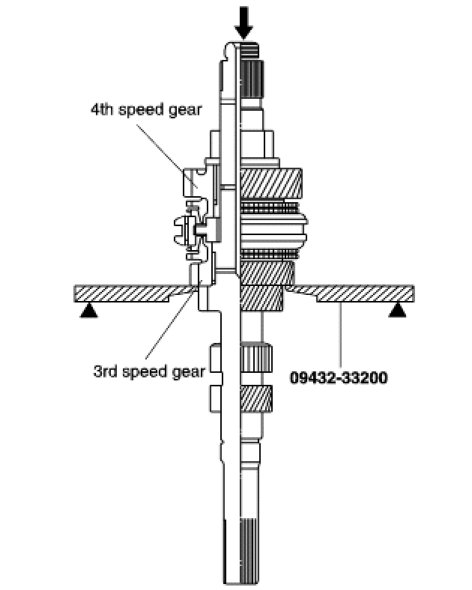

2. Remove the inner ring, spacer, 4th gear, needle roller bearing, bearing sleeve, synchronizer rings, 3rd and 4th gear synchronizer hub and sleeve and 3rd gear all together using the special tool (09432-33200).
