Windshield Wiper/Washer Switch











INSPECTION

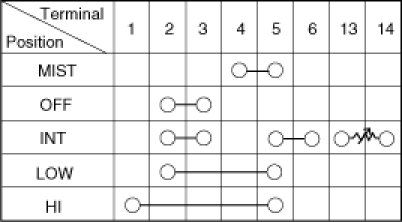

Check for continuity between the terminals while operating the wiper and washer switch.






WIPER SWITCH





WASHER SWITCH
