Control Circuit Inspection

Measure the voltage between terminal 86 of the fuel pump relay harness connector and chassis ground.
Specification : 4~5V

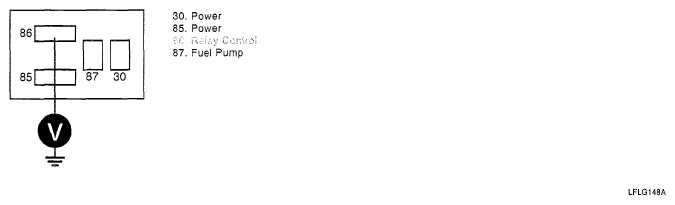

Fig 1: Measuring Voltage Between Terminal 86 Of Fuel Pump Relay Harness Connector And Chassis Ground
Courtesy of KIA MOTORS AMERICA, INC.
Is voltage within the specification?
YES
- Go to next step as below.
NO
- Check for open or short in control circuit. Repair as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
