Monitor Scan Tool Data

Check transponder and ECU status
1. IGN "ON" & Engine "OFF".
2. Monitor the "KEY STATUS" and "ECU STATUS1 Parameter on the scan tool.
  Specification : `LEARNT'

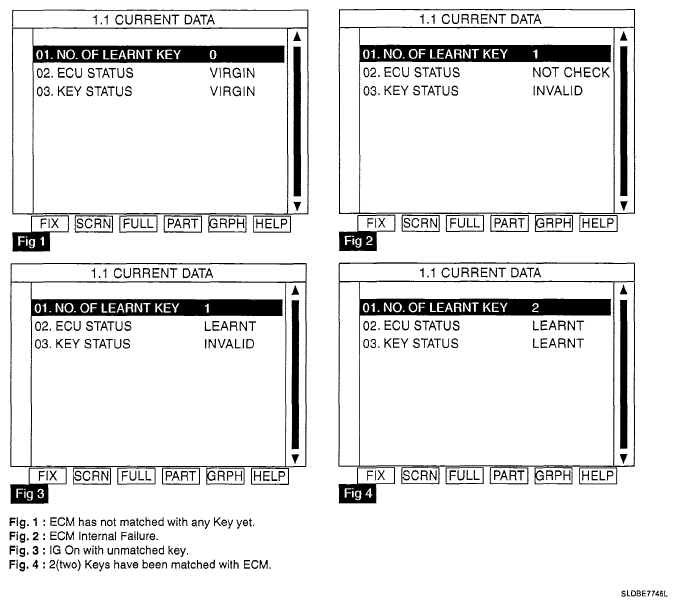

  Fig 1: Scan Tool Screen Display - CURRENT DATA
  Courtesy of KIA MOTORS AMERICA, INC.
3. Are "KEY STATUS" and "ECU STATUS1 Parameter within specifications?
  YES

  Check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.

  NO

  Perform wiring harness inspection and repair as necessary.
