Service Points

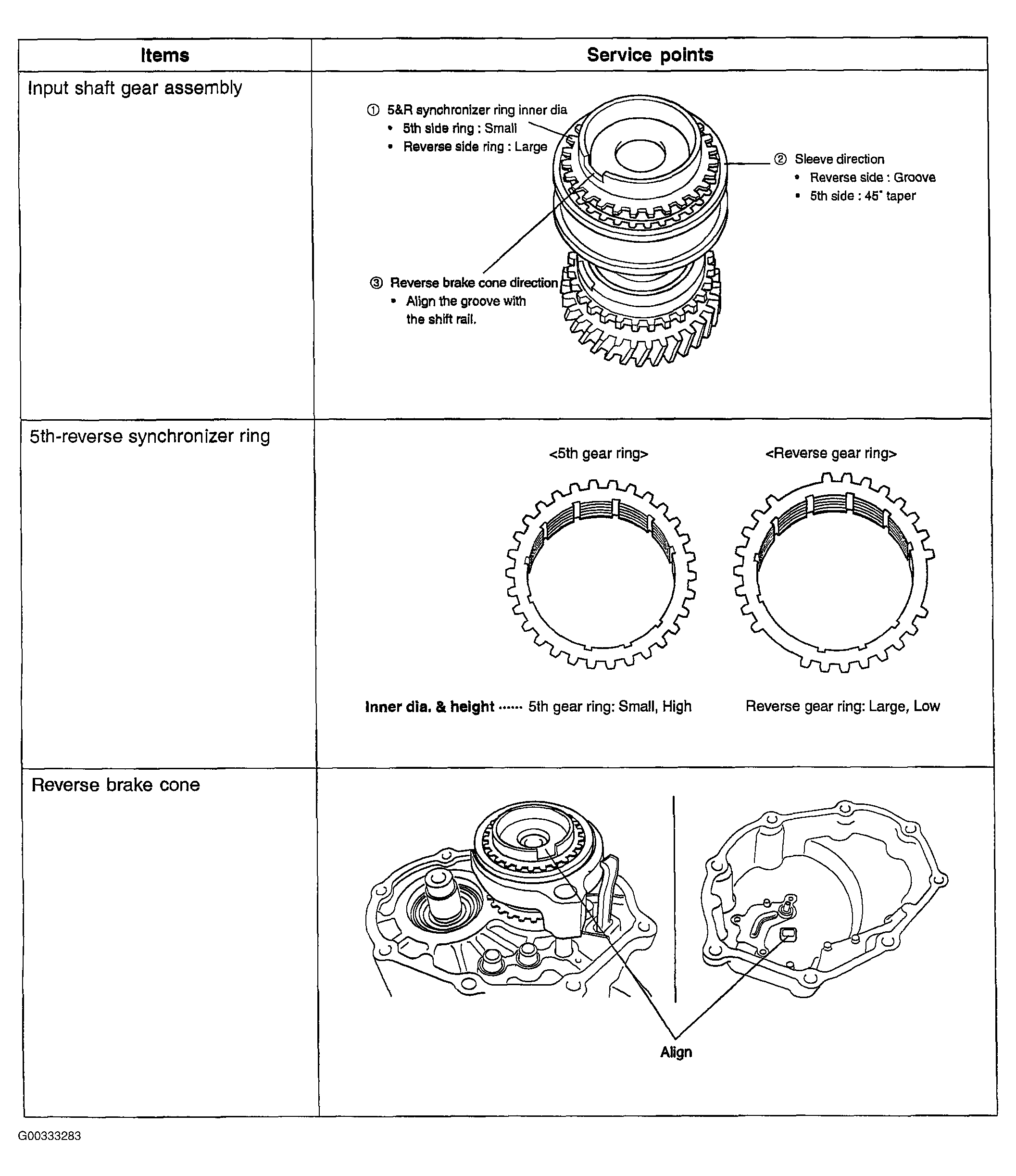

Fig 1: Service Points

G00333283

Courtesy of KIA MOTORS AMERICA, INC.

Double cone kit
1. Speed gear

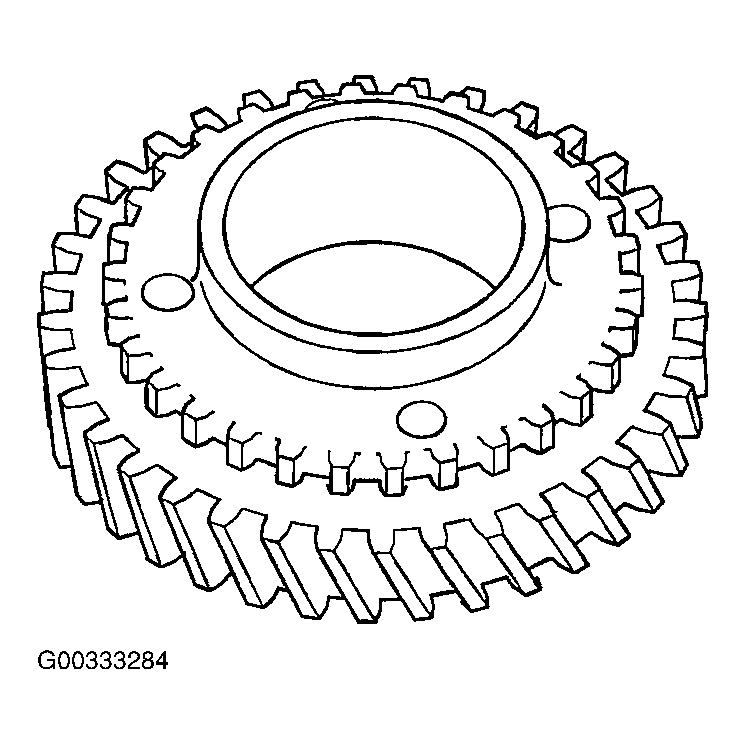

  Fig 2: Identifying Speed Gear
  Courtesy of KIA MOTORS AMERICA, INC.
2. Inner synchronizer ring

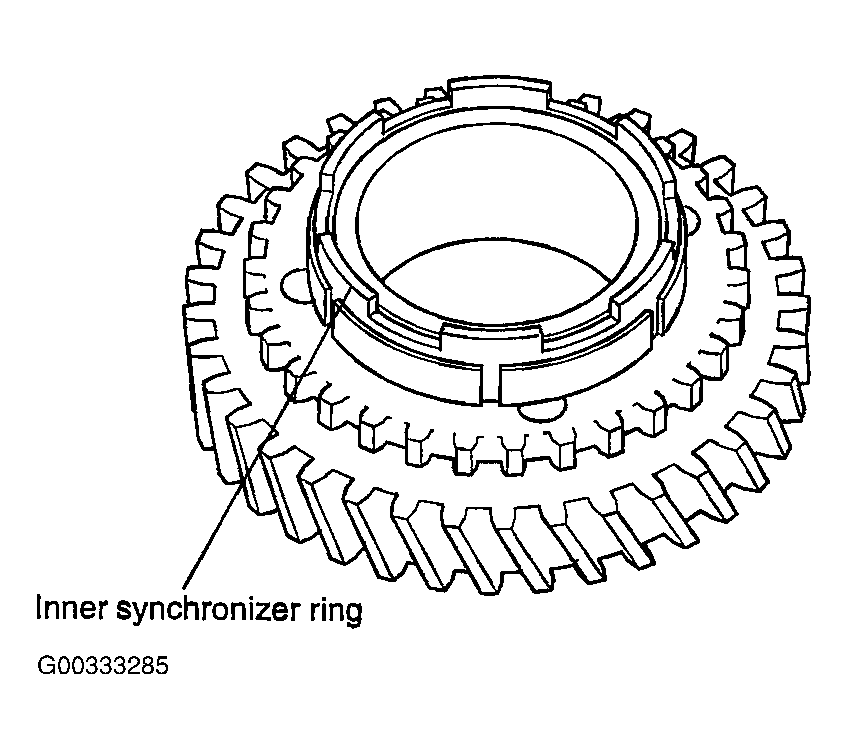

  Fig 3: Identifying Inner Synchronizer Ring
  Courtesy of KIA MOTORS AMERICA, INC.
3. Synchronizer cone

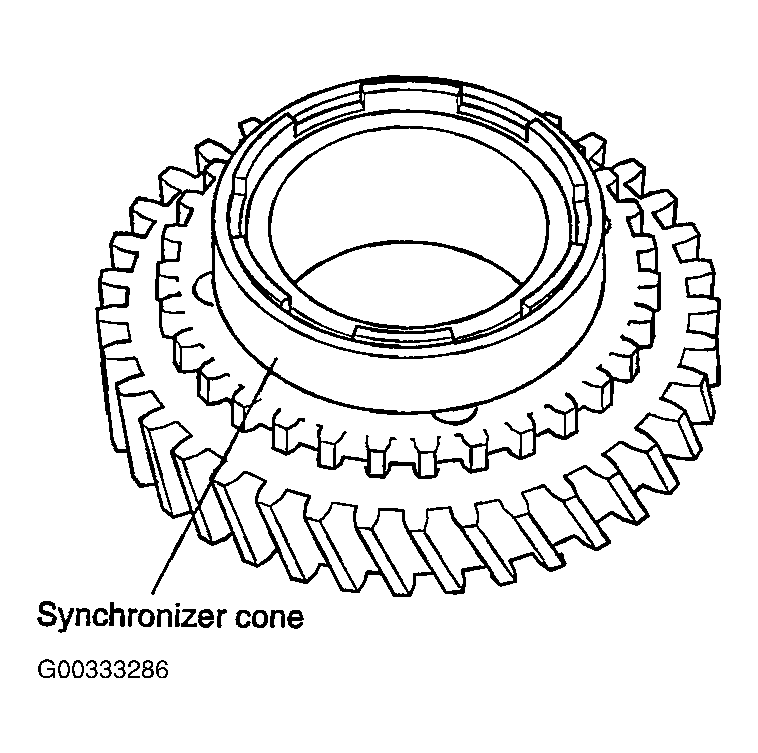

  Fig 4: Identifying Synchronizer Cone
  Courtesy of KIA MOTORS AMERICA, INC.
4. Outer synchronizer ring

  Fig 5: Identifying Outer Synchronizer Ring
  Courtesy of KIA MOTORS AMERICA, INC.
5. Spring

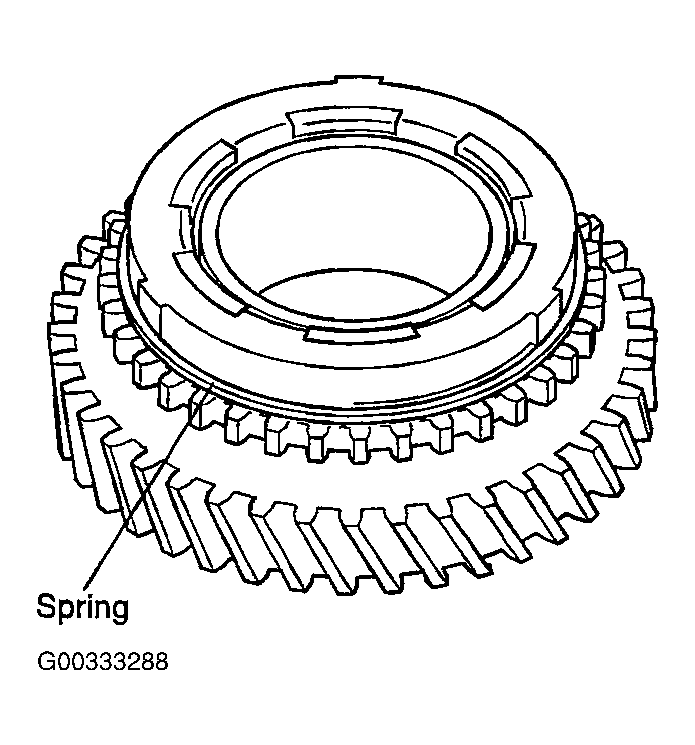

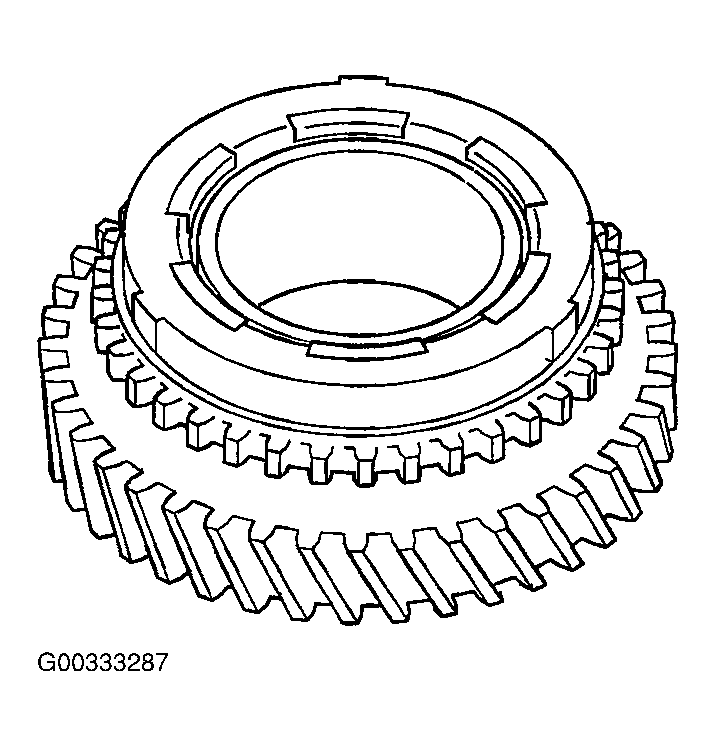

  Fig 6: Identifying Spring
  Courtesy of KIA MOTORS AMERICA, INC.
Sleeve & Hub Kit
1. Sleeve

  Fig 7: Identifying Sleeve
  Courtesy of KIA MOTORS AMERICA, INC.
2. Hub

  Fig 8: Identifying Hub
  Courtesy of KIA MOTORS AMERICA, INC.
3. Sleeve & hub

  Fig 9: Identifying Sleeve & Hub
  Courtesy of KIA MOTORS AMERICA, INC.
1st-2nd gear hub assembly direction
1. 1st gear side (Groove 3 places)

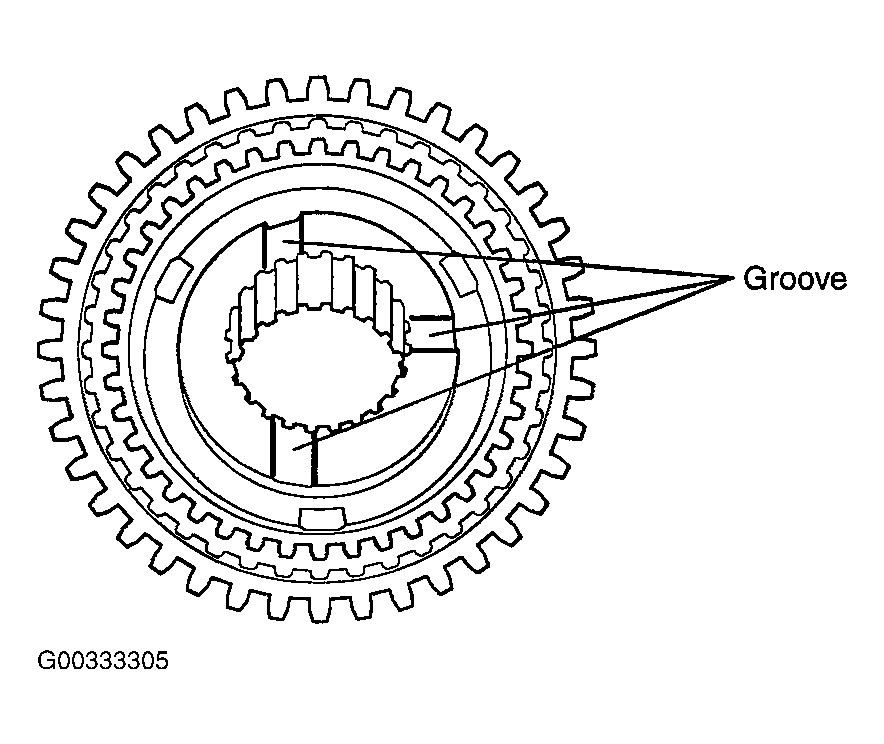

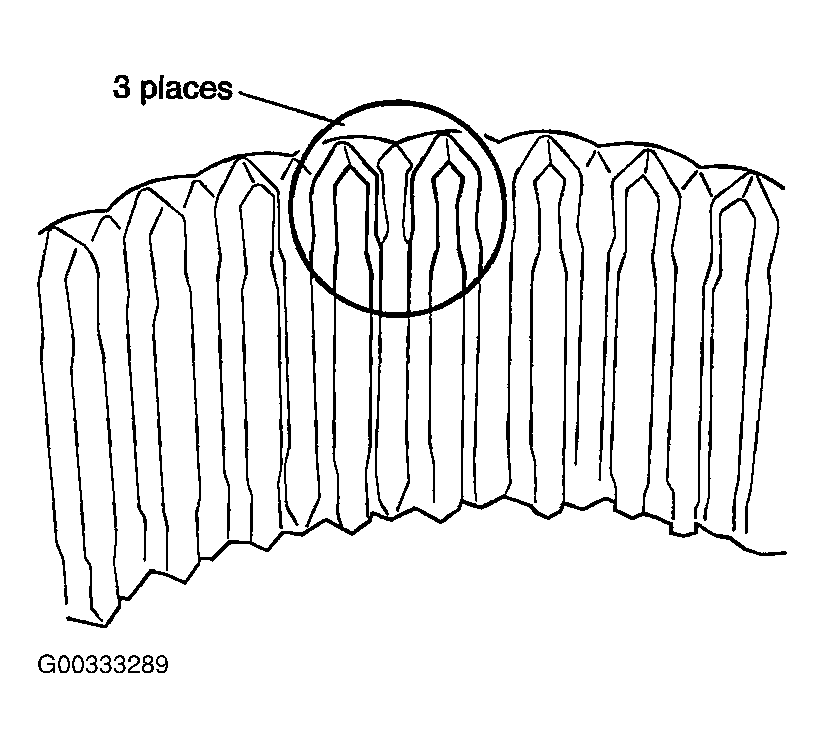

  Fig 10: 1st Gear Side (Groove 3 Places)
  Courtesy of KIA MOTORS AMERICA, INC.
2. 2nd gear side (Groove 2 Places)

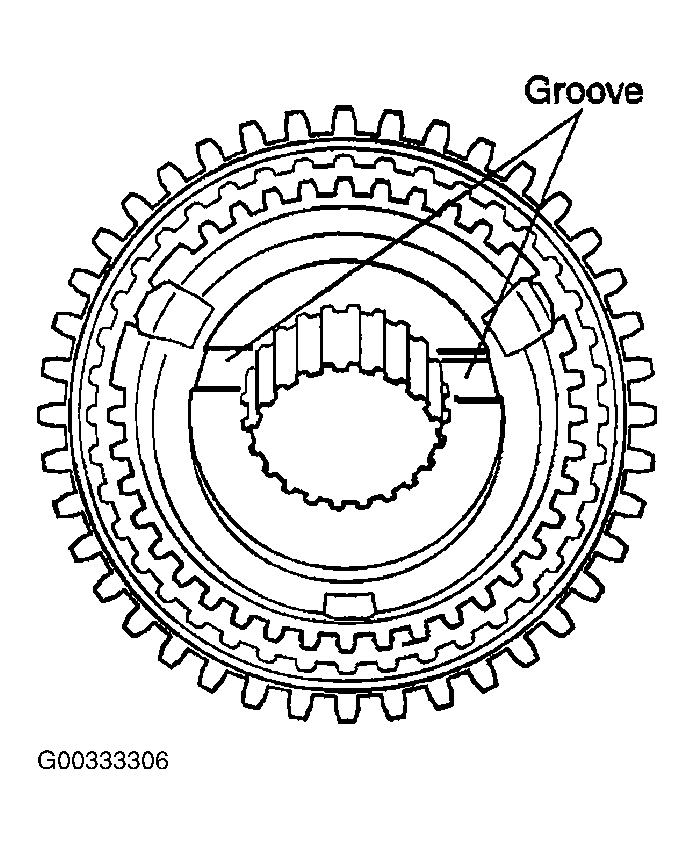

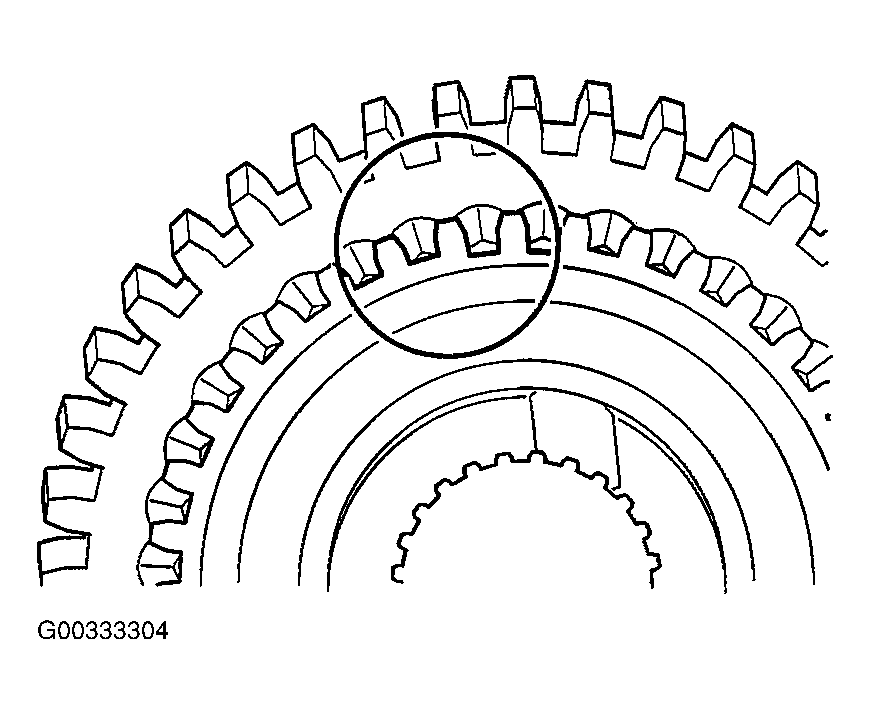

  Fig 11: 2nd Gear Side (Groove 2 Places)
  Courtesy of KIA MOTORS AMERICA, INC.
Double cone type

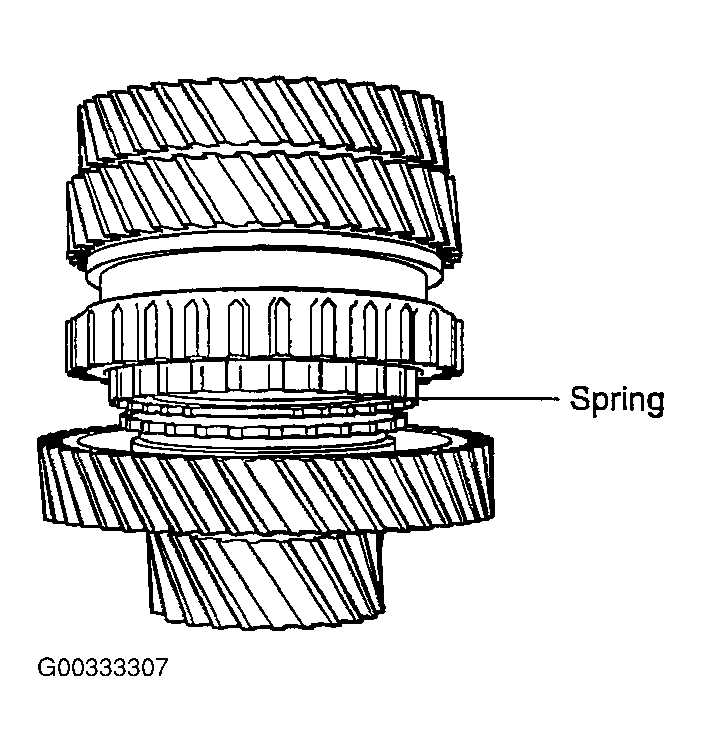

1. With spring

  Fig 12: Double Cone Type With Spring
  Courtesy of KIA MOTORS AMERICA, INC.
2. Double cone: Holes (4 places)

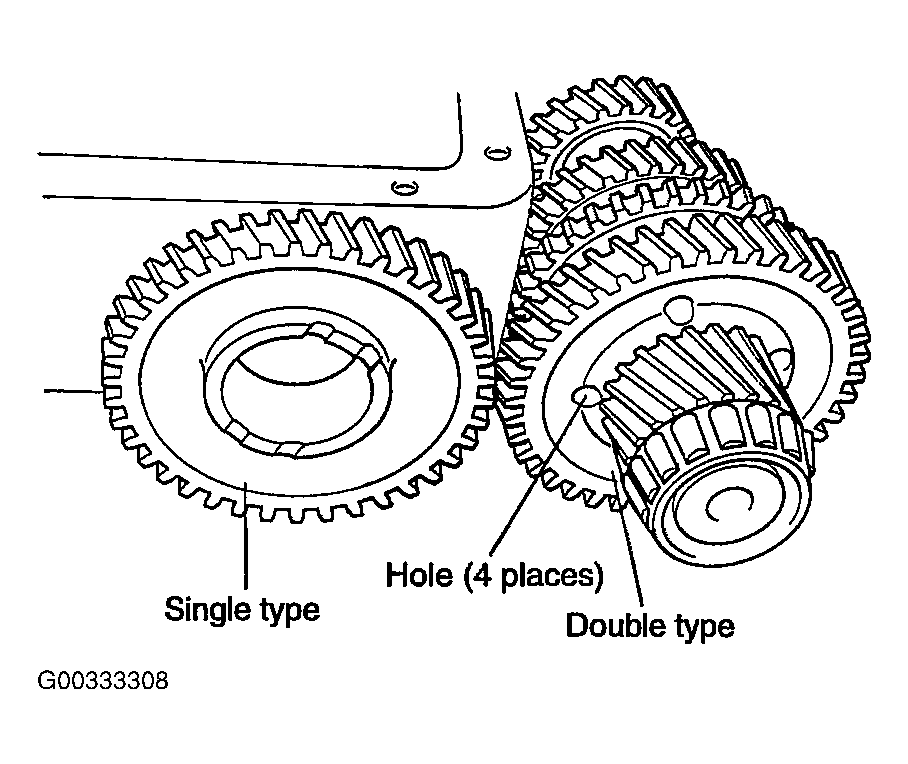

  Fig 13: Double Cone: Holes (4 places)
  Courtesy of KIA MOTORS AMERICA, INC.
