Steering Column/Shaft: Components

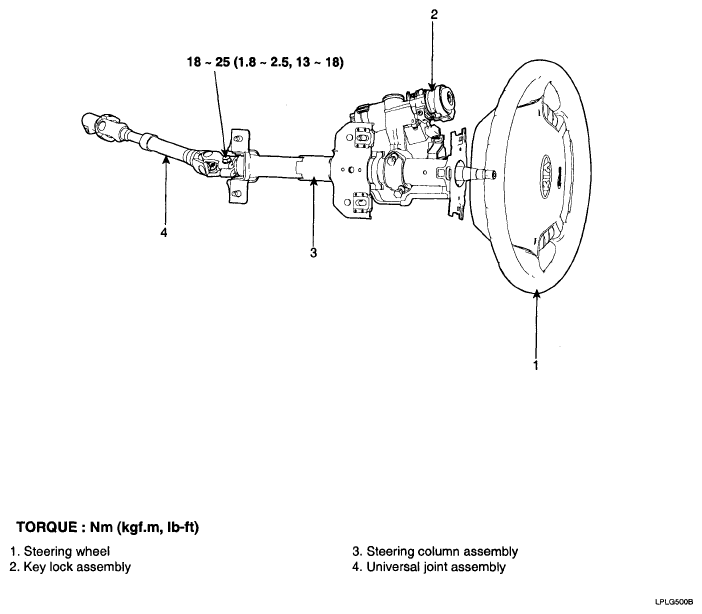

Fig 1: Steering Column/Shaft Replacement Components With Torque Specifications
G04805539Courtesy of KIA MOTORS AMERICA, INC.
