Audio Assembly Replacement

  1. Remove the CENTER FASCIA PANEL .
  2. Loosen the screws.

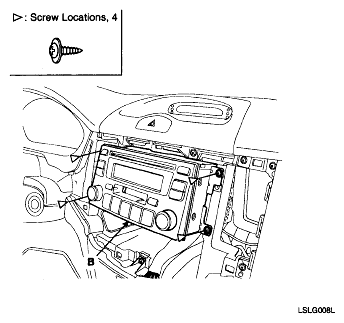

  3. Disconnect the audio connector and antenna cable, then remove the audio assembly (A).
    Fig 1: Identifying Audio Assembly
    G04806103Courtesy of KIA MOTORS AMERICA, INC.

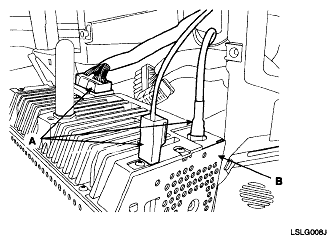

  4. Disconnect the cluster connector (A), then remove the audio assembly (B).
    Fig 2: Identifying Cluster Connector And Audio Assembly
    G04806104Courtesy of KIA MOTORS AMERICA, INC.
  5. Installation is the reverse of removal.
    NOTE:
    • Make sure the connector are plugged in properly.
